Tsop Flash Enable Points Pics


  • Please log in to reply
17 replies to this topic

#1 davicoro

davicoro

    X-S Senior Member

  • Members
  • PipPip
  • 262 posts

Posted 25 June 2004 - 05:11 PM

HERE IS SOME PICS OF THE ENABLE POINTS

PIC 1: 1.0 - 1.1 TSOP ENABLE POINTS (NOT FOR SHARP TSOP)

PIC 2: 1.0 - 1.1 SHARP ENABLE POINTS (ONLY FOR SHARP TSOP)

PIC 3: 1.2 - 1.5 TSOP ENABLE POINTS

=====================================================
=====================================================

cool.gif - ENABLE POINTS FOR XBOX V 1.0 - 1.1
(DONT WORK WHITH SHARP TSOP)

user posted image

1 - JOIN THE TWO POINTS ON THE BLUE "0"
(ONE ON TOP OF THE MOBO AND ONE UNDER)

2 - THEN FLASH

=====================================================
=====================================================

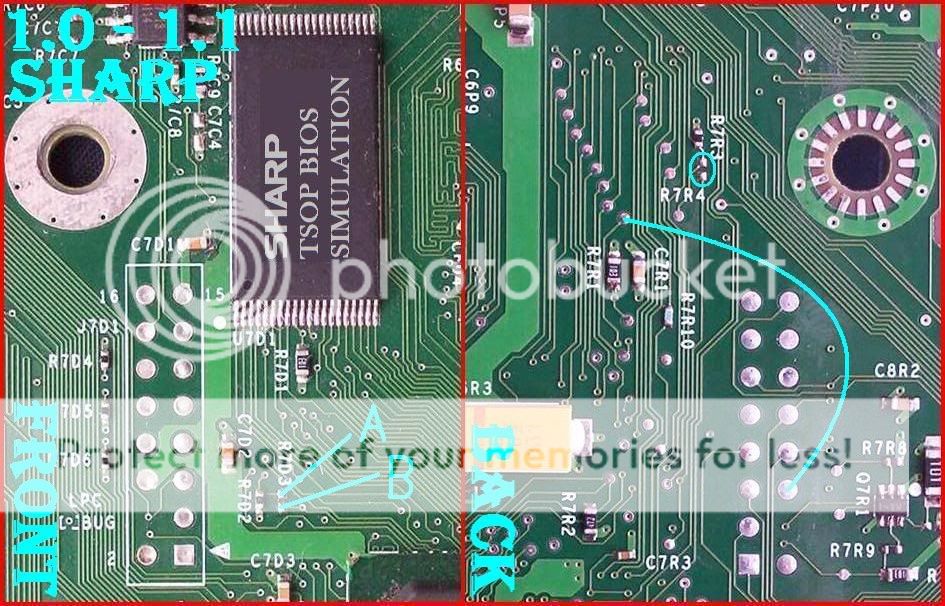

cool.gif - ENABLE POINTS FOR XBOX V 1.0 - 1.1 WITH SHARP TSOP
(SORRY... I DONT FIND A TRUE SHARP)

user posted image

1 - JOIN THE POINT ON THE BLUE "0"
(UNDER MOBO)

2 - JOIN THE WIRE
(UNDER MOBO)

3 - USE TWO LONG WIRE ONE ON "A" AND OTHER ON "B"
(TOP OF THE MOBO)

4 - TURN ON THE XBOX AND WHEN YOU ARE READY TO FLASH TWIST THE WIRE "A" WITH THE WIRE "B"

5 - NOW FLASH

=====================================================
=====================================================

cool.gif - ENABLE POINTS FOR XBOX 1.2 - 1.5

user posted image

1 - JOIN THE TWO POINTS ON THE BLUE "0"
(ONE ON TOP OF THE MOBO AND ONE UNDER)

2 - NOW FLASH
=====================================================


PLEASE... DONT PUT A WIRE FROM D0 TO GROUND laugh.gif

Edited by davicoro, 26 June 2004 - 01:40 AM.


#2 bucko

bucko

    Super Moderator

  • Head Moderator
  • PipPipPipPipPipPipPipPipPipPipPip
  • 7,995 posts
  • Location:England
  • Xbox Version:v1.6
  • 360 version:v5.0 (360S - trinity)

Posted 25 June 2004 - 06:40 PM

Awsome hi-res pics, may come in handy one day.

#3 davicoro

davicoro

    X-S Senior Member

  • Members
  • PipPip
  • 262 posts

Posted 25 June 2004 - 07:35 PM

maybe...

i hope that someone like the sharp tsop.. laugh.gif

#4 Krusty2k

Krusty2k

    X-S Member

  • Members
  • Pip
  • 68 posts

Posted 26 June 2004 - 01:29 AM

just so people dont get confused. On a 1.2 - 1.5 you only joint the two points shown on the FRONT (or top) of the Mobo. I think this is what the poster said, but when i read it, I had to second guess. I think he meant front as in the front of the case where the power button is, and back where the fan is.

Congrats on the super pics they rock!!!!

#5 davicoro

davicoro

    X-S Senior Member

  • Members
  • PipPip
  • 262 posts

Posted 26 June 2004 - 01:33 AM

QUOTE (Krusty2k @ Jun 26 2004, 03:29 AM)
just so people dont get confused. On a 1.2 - 1.5 you only joint the two points shown on the FRONT (or top) of the Mobo. I think this is what the poster said, but when i read it, I had to second guess. I think he meant front as in the front of the case where the power button is, and back where the fan is.

Congrats on the super pics they rock!!!!

sorry... im not to good at english...(i speak spanish). i forget the word "top" when i was doin this one!!! i hope this can help people of the scene!!!

#6 formulanerd

formulanerd

    X-S Enthusiast

  • Members
  • 14 posts

Posted 24 January 2005 - 07:45 AM

great pictures amigo! muchos gracias!

Edited by formulanerd, 24 January 2005 - 07:48 AM.


#7 JohnnyHunng

JohnnyHunng

    X-S Freak

  • Members
  • PipPipPipPipPip
  • 1,244 posts
  • Location:Way Down South
  • Xbox Version:unk

Posted 24 January 2005 - 05:37 PM

These pics r so old, i think lordvader had em in his sig for ages.

#8 ReRuss

ReRuss

    X-S Expert

  • Members
  • PipPipPip
  • 547 posts
  • Xbox Version:v1.0
  • 360 version:v5.0 (360S - trinity)

Posted 08 June 2005 - 05:37 PM

1.2-1.5 doesnt have bottom points?

#9 lordvader129

lordvader129

    He Who Posts Alot...

  • Head Moderator
  • PipPipPipPipPipPipPipPipPipPipPipPipPipPipPip
  • 17,735 posts
  • Location:Chicago, USA
  • Interests:#lordvader129
  • Xbox Version:v1.1
  • 360 version:v5.0 (360S - trinity)

Posted 08 June 2005 - 06:09 PM

QUOTE(ReRuss @ Jun 8 2005, 12:48 PM)
1.2-1.5 doesnt have bottom points?

View Post


there is one set of obottom points, but the are identical to the second top set, so tehres no point in bothering with them

#10 ReRuss

ReRuss

    X-S Expert

  • Members
  • PipPipPip
  • 547 posts
  • Xbox Version:v1.0
  • 360 version:v5.0 (360S - trinity)

Posted 08 June 2005 - 06:21 PM

I dont have to solder bottom points then?

#11 lordvader129

lordvader129

    He Who Posts Alot...

  • Head Moderator
  • PipPipPipPipPipPipPipPipPipPipPipPipPipPipPip
  • 17,735 posts
  • Location:Chicago, USA
  • Interests:#lordvader129
  • Xbox Version:v1.1
  • 360 version:v5.0 (360S - trinity)

Posted 08 June 2005 - 07:07 PM

QUOTE(ReRuss @ Jun 8 2005, 01:32 PM)
I dont have to solder bottom points then?

View Post


no, and thats why they arent pictured in this tutorial, lol

#12 ReRuss

ReRuss

    X-S Expert

  • Members
  • PipPipPip
  • 547 posts
  • Xbox Version:v1.0
  • 360 version:v5.0 (360S - trinity)

Posted 08 June 2005 - 07:44 PM

I seen some other guides that shown bottom points on 1.2/1.3 and 1.2-1.5

Seein as how I only need top points I should pop open my 1.3(?) box and bridge those points

Btw , what BIOs is best to use? I know there's like X2 (Just get latest?) and EvoX (M7 or M8?) , and is EvoX good at flashin the TSOP?

And what I do if it doesnt flash right unsure.gif

#13 Iloveanime

Iloveanime

    X-S Member

  • XS-BANNED
  • Pip
  • 74 posts
  • Location:Fort Smith AR
  • Xbox Version:v1.1
  • 360 version:none

Posted 15 September 2006 - 06:58 PM

I have modded a few 1.0's and 1.1's and I have never needed to add the little wire on the bottom from the lpc to a joint. I just solder the spot on the top and I solder the two joints beside the screw but the wire. I have never used and I mine have been working like a charm. What's the purpose of the wire? Anyway Later

#14 FrostyTheSnowman

FrostyTheSnowman

    X-S Freak

  • Members
  • PipPipPipPipPip
  • 1,674 posts
  • Location:Utah
  • Xbox Version:v1.0
  • 360 version:v1 (xenon)

Posted 15 September 2006 - 07:13 PM

That wire is only necessary for people with SHARP TSOPs. The SHARP TSOP requires more power to be erased and flashed.

#15 plugh

plugh

    X-S Enthusiast

  • Members
  • 11 posts

Posted 17 September 2006 - 12:54 AM

I am currently running a softmod and evox dash,
but am thinking about doing a tsop flash. The xbox
has never been opened, but from various readings
I believe it is a v1.0 (bought it used).

I'm currently in the planning stages, but before I open
the thing I was wondering if there was any handy utility
I could run that would tell me what type of flash I had -
in particular, if it was a Sharp TSOP or not.

Thanks!

Edited by plugh, 17 September 2006 - 12:59 AM.
