5 Cc With One Inverter?


  • Please log in to reply
12 replies to this topic

#1 DeBigMachine

DeBigMachine

    X-S Senior Member

  • Members
  • PipPip
  • 216 posts
  • Xbox Version:v1.6b
  • 360 version:v1 (xenon)

Posted 25 February 2005 - 02:17 AM

Click Here

...... sry if it doesn't work....anyways as you can see in those photos there are cathodes on the dvd window, jewel and the ront panel of the xbox with only one inverter that i can see...How can you do that? Becasue they are not using led which is what i know....Please help if u can thanks.

#2 FoeHammer05

FoeHammer05

    X-S Freak

  • XS-BANNED
  • PipPipPipPipPip
  • 1,158 posts
  • Location:Hoover, AL
  • Xbox Version:v1.0

Posted 25 February 2005 - 02:20 AM

I simply took two apart and combined them, takes up as much space as one:

user posted image

Edited by FoeHammer05, 25 February 2005 - 02:20 AM.


#3 DeBigMachine

DeBigMachine

    X-S Senior Member

  • Members
  • PipPip
  • 216 posts
  • Xbox Version:v1.6b
  • 360 version:v1 (xenon)

Posted 25 February 2005 - 02:21 AM

Bump....sry forgot to mention that you should click on the red lighted one and if u can see in the middle picture on the top left there is only one inverter.

#4 DeBigMachine

DeBigMachine

    X-S Senior Member

  • Members
  • PipPip
  • 216 posts
  • Xbox Version:v1.6b
  • 360 version:v1 (xenon)

Posted 25 February 2005 - 02:31 AM

Thanks i appriciate it but how did u do that cause thats seems confusing...thanks

#5 FoeHammer05

FoeHammer05

    X-S Freak

  • XS-BANNED
  • PipPipPipPipPip
  • 1,158 posts
  • Location:Hoover, AL
  • Xbox Version:v1.0

Posted 25 February 2005 - 02:42 AM

Take two converters and pry them open. Take out the boards and put them back-to-back like the pic. Put them in one of the blue tops. (I cut off the front end on them so the wires could fit better. Then tape them down using electricle tape. I havnt had any electric problems so far, so its pretty safe.

Edited by FoeHammer05, 25 February 2005 - 02:42 AM.


#6 xzphatboizx69

xzphatboizx69

    X-S Freak

  • XS-BANNED
  • PipPipPipPipPip
  • 1,178 posts
  • Xbox Version:v1.4
  • 360 version:v1 (xenon)

Posted 25 February 2005 - 04:02 AM

you can fit 3 invertors, in thier normal case, in a stock case. 1 behind the dvd drive, and 2 underneath, pain in tha ass but possible. leds r the best any ways beerchug.gif


Fat Boi

#7 FoeHammer05

FoeHammer05

    X-S Freak

  • XS-BANNED
  • PipPipPipPipPip
  • 1,158 posts
  • Location:Hoover, AL
  • Xbox Version:v1.0

Posted 25 February 2005 - 05:23 AM

But CC's are brighter..... biggrin.gif

#8 ladiesman

ladiesman

    X-S Member

  • Members
  • Pip
  • 144 posts

Posted 25 February 2005 - 05:39 AM

yeah i think i like cathodes better, its more of a plug ang play mod

i cant solder worth the shit

#9 TfAv1228

TfAv1228

    X-S Member

  • Members
  • Pip
  • 122 posts
  • Xbox Version:v1.0

Posted 25 February 2005 - 07:25 AM

that lookslike el wire too me


#10 AgentEB

AgentEB

    X-S X-perience

  • Members
  • PipPip
  • 468 posts
  • Xbox Version:unk

Posted 25 February 2005 - 08:43 AM

you should also mention that it's a sunbeam inverter. not every inverter can be made to fit into one. i uses these exclusively for my cathodes because it supports two cathodes and doesn't cause any interferance whatsoever biggrin.gif

#11 wicket_lfe

wicket_lfe

    X-S Senior Member

  • Members
  • PipPip
  • 249 posts
  • Location:NY
  • Xbox Version:v1.4
  • 360 version:v1 (xenon)

Posted 25 February 2005 - 06:35 PM

QUOTE(xzphatboizx69 @ Feb 24 2005, 09:08 PM)
you can fit 3 invertors, in thier normal case, in a stock case. 1 behind the dvd drive, and 2 underneath, pain in tha ass but possible. leds r the best any ways  beerchug.gif
Fat Boi

View Post



in that case u can fit 4, i can fit 2 behind the dvd, and two below, depending on where u solder the d0 point, my d0 wire gets in the way, so if u can get 2 behind and 2 below, i u can cram 4 inverters so far in their regular case.

#12 ninjax

ninjax

    X-S Genius

  • Members
  • PipPipPipPip
  • 869 posts
  • Location:Rhode Island
  • Interests:Custom case mod's<br />Aikido<br />paintball (2002 Autococker Tricked out)
  • Xbox Version:v1.0
  • 360 version:v1 (xenon)

Posted 25 February 2005 - 09:22 PM

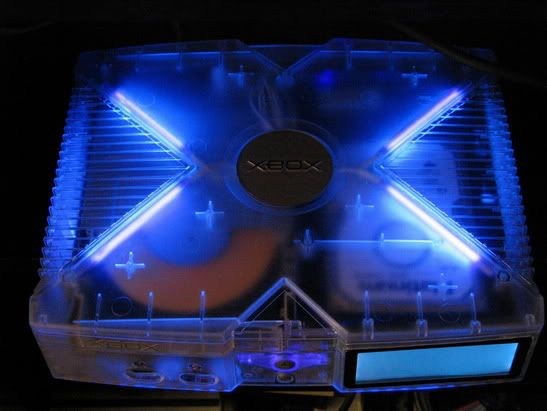

10 CCt's...5 inverters. 3 below the DVD and 2 behind. smile.gif

user posted image



#13 FoeHammer05

FoeHammer05

    X-S Freak

  • XS-BANNED
  • PipPipPipPipPip
  • 1,158 posts
  • Location:Hoover, AL
  • Xbox Version:v1.0

Posted 26 February 2005 - 01:36 AM

Nice, so you have one between the disk drive and the hd?
