Controller Port Leds


  • Please log in to reply
34 replies to this topic

#1 TheTik

TheTik

    X-S Member

  • Members
  • Pip
  • 115 posts
  • Location:Toronto, Ontario
  • Xbox Version:unk

Posted 31 August 2005 - 04:33 AM

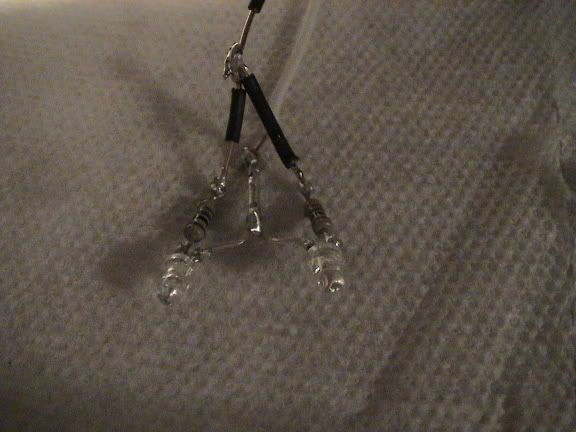

ok i started doing my controller port leds and i thought of a very good way to get them inside comfortably no problem. First i took off the flap at the back of the port..covered the inside with tape...and then made this thing.....user posted image

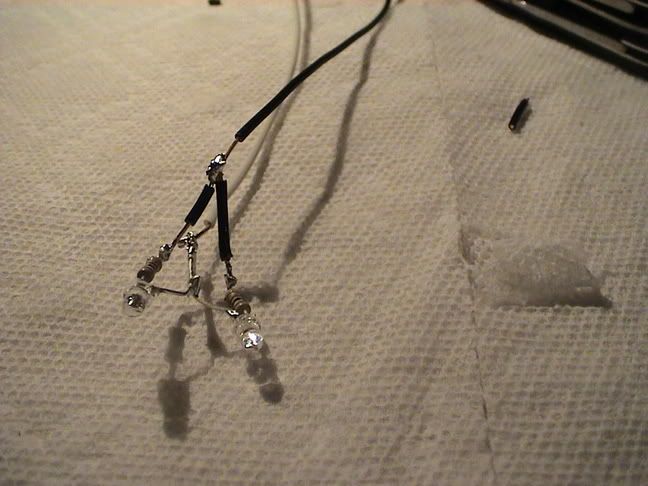

heres another pic

user posted image


it works perfectly and just slides in....




PS...i know i suck at soldering

#2 soupy_31

soupy_31

    X-S Freak

  • Members
  • PipPipPipPipPip
  • 1,178 posts
  • Location:Toronto, Ontario, Canada
  • Interests:Hockey, XBOX, GFX..
  • Xbox Version:v1.6
  • 360 version:none

Posted 31 August 2005 - 04:35 AM

wow that is definitly going to short. blink.gif

#3 blue bandicoot

blue bandicoot

    X-S Hacker

  • Members
  • PipPipPipPipPipPip
  • 2,283 posts
  • Location:USA
  • Xbox Version:v1.4
  • 360 version:v1 (xenon)

Posted 31 August 2005 - 04:35 AM

pretty good. where does the led power connect to?

#4 sick_mate_xbox

sick_mate_xbox

    X-S Expert

  • Members
  • PipPipPip
  • 744 posts
  • Location:Darwin, Australia
  • Interests:-Skateboarding<br />-My VT Commodore<br />-Xbox Modding<br />-Rachael :)<br />-Snakes
  • Xbox Version:v1.5
  • 360 version:v1 (xenon)

Posted 31 August 2005 - 04:41 AM

looks like it would work. is there a tut for controller port leds? im thinking of doing them myself. cheers beerchug.gif

-robbo

#5 TheTik

TheTik

    X-S Member

  • Members
  • Pip
  • 115 posts
  • Location:Toronto, Ontario
  • Xbox Version:unk

Posted 31 August 2005 - 04:43 AM

QUOTE(soupy_31 @ Aug 31 2005, 05:46 AM)
wow that is definitly going to short. blink.gif

View Post



not it isnt i have 2 and nothing so far



and the power is from the controller ports..... red wire

#6 st3ph3nt4n

st3ph3nt4n

    X-S Expert

  • Members
  • PipPipPip
  • 630 posts
  • Xbox Version:v1.6
  • 360 version:v5.0 (360S - trinity)

Posted 31 August 2005 - 04:56 AM

QUOTE(soupy_31 @ Aug 30 2005, 09:46 PM)
wow that is definitly going to short. blink.gif

View Post



ah yes another pointless post from him..

It looks a little messy, but it is a good concept you have going beerchug.gif

#7 b15ginz

b15ginz

    X-S Freak

  • Members
  • PipPipPipPipPip
  • 1,951 posts
  • Location:North South East West
  • Interests:graphic design, web design.
  • Xbox Version:v1.6
  • 360 version:v1 (xenon)

Posted 31 August 2005 - 05:00 AM

QUOTE(st3ph3nt4n @ Aug 31 2005, 12:07 AM)
ah yes another pointless post from him..

View Post




LMAO! isnt that the truth. Post the finished one u got. cool concept..like he said.

#8 _GhOsT_

_GhOsT_

    X-S Genius

  • Members
  • PipPipPipPip
  • 970 posts
  • Location:
  • Xbox Version:v1.6
  • 360 version:v4.0 (jasper)

Posted 31 August 2005 - 05:26 AM

i like it i think its better to use 2 and find a good way to fit them then to only use one

#9 Veeb0rg

Veeb0rg

    X-S Enthusiast

  • Members
  • 27 posts
  • Xbox Version:v1.6
  • 360 version:unknown

Posted 31 August 2005 - 06:15 AM

when you put the resistor in, did u put it on the positive side, or the negative? according to the led resistor calculator, it goes negative.. but i dunno..

#10 SICKdimension

SICKdimension

    X-S Messiah

  • Head Moderators
  • PipPipPipPipPipPipPip
  • 3,659 posts
  • Gender:Male
  • Location:California
  • Interests:TO IM ME, STATE YOUR REASON, DON'T JUST SAY &quot;HEY R U THERE?&quot;
  • Xbox Version:v1.4
  • 360 version:v1 (xenon)

Posted 31 August 2005 - 06:22 AM

QUOTE(Veeb0rg @ Aug 30 2005, 11:26 PM)
when you put the resistor in, did u put it on the positive side, or the negative? according to the led resistor calculator, it goes negative.. but i dunno..

View Post


The resistor can go anywhere in the circuit, so it can be on either side.

#11 The Timmy

The Timmy

    X-S Expert

  • Members
  • PipPipPip
  • 525 posts
  • Location:Garland Tx.
  • Xbox Version:v1.0
  • 360 version:v3.0 (falcon)

Posted 31 August 2005 - 06:48 AM

QUOTE(sick_mate_xbox @ Aug 30 2005, 10:52 PM)
is there a tut for controller port leds? im thinking of doing them myself. cheers  beerchug.gif

-robbo

View Post



yeah, for a while my tut use to be the star of controler port led tuts.... but since then, the star has faded. the link is still good though:

www.TheTimmy.tk - Controler Port LED tut

#12 Veeb0rg

Veeb0rg

    X-S Enthusiast

  • Members
  • 27 posts
  • Xbox Version:v1.6
  • 360 version:unknown

Posted 31 August 2005 - 07:24 AM

QUOTE(The Timmy @ Aug 31 2005, 02:59 AM)
yeah, for a while my tut use to be the star of controler port led tuts....  but since then, the star has faded.  the link is still good though:

www.TheTimmy.tk - Controler Port LED tut

View Post



thats damned pimp.. i wanted a switch.. i'm almost done.. i'll have pics in a few..

#13 BoNg420

BoNg420

    X-S Messiah

  • Head Moderators
  • PipPipPipPipPipPipPip
  • 3,803 posts
  • Gender:Male
  • Location:USA
  • Xbox Version:none
  • 360 version:v5.0 (360S - trinity)

Posted 31 August 2005 - 07:32 AM

heres the best way, i use 3 leds per port when requested.
user posted image

your way looks to much work and waste of time. then i make sure no metal is touching and fill the port with hot glue enough so you can still close it.

Edited by BoNg420, 31 August 2005 - 07:32 AM.


#14 TheTik

TheTik

    X-S Member

  • Members
  • Pip
  • 115 posts
  • Location:Toronto, Ontario
  • Xbox Version:unk

Posted 31 August 2005 - 03:02 PM

i would do it like that but i have differnent ports than u....i have a 1.0 box so the ports are all metal with the big plastic thing on top

#15 Shutdown[Swe]

Shutdown[Swe]

    X-S Expert

  • Members
  • PipPipPip
  • 553 posts
  • Location:SWEDEN!!
  • Interests:Xbox Xbox Xbox Xbox<br />
  • Xbox Version:v1.4
  • 360 version:v1 (xenon)

Posted 31 August 2005 - 03:57 PM

any "finished product" pictures of the light? Need them pictures tongue.gif
