G0t M4xx 21's Worklog Round 2!


  • Please log in to reply
69 replies to this topic

#1 G0t M4xx 21

G0t M4xx 21

    X-S Freak

  • XS-BANNED
  • PipPipPipPipPip
  • 1,990 posts
  • Location:ATX! Hook 'em Horns!
  • Xbox Version:v1.4
  • 360 version:v1 (xenon)

Posted 05 March 2006 - 07:46 PM

All righty I couldn't sit around this long, since my First full 360 mod back in late December/Early January, I've been itching to mod up another one. Well, my time has come.

Living in Austin, Texas, I'm going for a University of Texas themed box.

I'm doing all white LED's this time, with a metallic orange paint, and some sort of UTish window, probably just the longhorn.

As of right now the 360 is just in pieces all over my workroom, and I've got the ring of light and the wireless controller LED's changed to white.

More updates as they come

#2 Afroman

Afroman

    X-S Enthusiast

  • Members
  • 26 posts
  • Xbox Version:v1.0
  • 360 version:v1 (xenon)

Posted 05 March 2006 - 07:57 PM

Can;t wait to see it..

You know i still have not posted pics of mine.



#3 Master X

Master X

    X-S Hacker

  • XS-BANNED
  • PipPipPipPipPipPip
  • 2,010 posts
  • Location:Look Behind You
  • Xbox Version:v1.0
  • 360 version:v1 (xenon)

Posted 05 March 2006 - 08:09 PM

QUOTE(G0t M4xx 21 @ Mar 5 2006, 03:53 PM) View Post

All righty I couldn't sit around this long, since my First full 360 mod back in late December/Early January, I've been itching to mod up another one. Well, my time has come.

Living in Austin, Texas, I'm going for a University of Texas themed box.

I'm doing all white LED's this time, with a metallic orange paint, and some sort of UTish window, probably just the longhorn.

As of right now the 360 is just in pieces all over my workroom, and I've got the ring of light and the wireless controller LED's changed to white.

More updates as they come

laugh.gif I cant stop laughing at the quote in your sig. BTW Cant wait to see how it is going to look like.

#4 clickerX

clickerX

    X-S Expert

  • XS-BANNED
  • PipPipPip
  • 501 posts
  • Xbox Version:v1.6b
  • 360 version:v1 (xenon)

Posted 05 March 2006 - 08:28 PM

sounds good DO IT hah

#5 BoNg420

BoNg420

    X-S Messiah

  • Head Moderators
  • PipPipPipPipPipPipPip
  • 3,809 posts
  • Gender:Male
  • Location:USA
  • Xbox Version:none
  • 360 version:v5.0 (360S - trinity)

Posted 05 March 2006 - 08:37 PM

QUOTE(Master X @ Mar 5 2006, 02:16 PM) View Post

laugh.gif I cant stop laughing at the quote in your sig. BTW Cant wait to see how it is going to look like.

yea he qouted me lol

#6 XLostSpartanX

XLostSpartanX

    X-S Expert

  • XS-BANNED
  • PipPipPip
  • 604 posts
  • Location:Spartanburg, SC
  • Xbox Version:none
  • 360 version:v1 (xenon)

Posted 05 March 2006 - 08:48 PM

Looking forward to it!

#7 FlatLINE KILLER

FlatLINE KILLER

    X-S Young Member

  • Members
  • Pip
  • 39 posts
  • Location:Des Moines, Iowa
  • Xbox Version:unk
  • 360 version:v1 (xenon)

Posted 05 March 2006 - 10:47 PM

nice 360 man! keep up the good work!

#8 bosstitan187

bosstitan187

    X-S Genius

  • XS-BANNED
  • PipPipPipPip
  • 927 posts
  • Location:Tampa FL
  • Xbox Version:v1.5
  • 360 version:unknown

Posted 05 March 2006 - 11:11 PM

NOOOOO!!!! DAMN U lol im doing this for a customer in like 2 weeks

#9 blob_54

blob_54

    X-S Senior Member

  • Members
  • PipPip
  • 271 posts
  • Location:Northwest
  • Interests:modding, cars, comps
  • Xbox Version:v1.0
  • 360 version:v5.0 (360S - trinity)

Posted 06 March 2006 - 03:37 AM

Idea for you....

I wanted to do it for mine, but i'd prolly never use it, I was thinkin of slapping in a wireless networkingadapter, and wireing it to be internal smile.gif

what do u think, I think you should do it, I just dont think I'd ever use it beerchug.gif


looking forward to ur next xbox


oh btw, what did you last one sell for on ebay?


blober

#10 G0t M4xx 21

G0t M4xx 21

    X-S Freak

  • XS-BANNED
  • PipPipPipPipPip
  • 1,990 posts
  • Location:ATX! Hook 'em Horns!
  • Xbox Version:v1.4
  • 360 version:v1 (xenon)

Posted 10 March 2006 - 07:09 AM

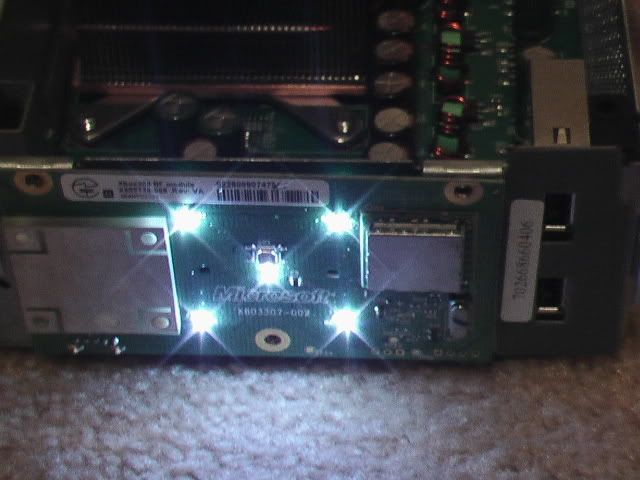

ahh ive been really busy this week, just managed to snap a pic of the ring of light...

mmm nice bright white:
IPB Image

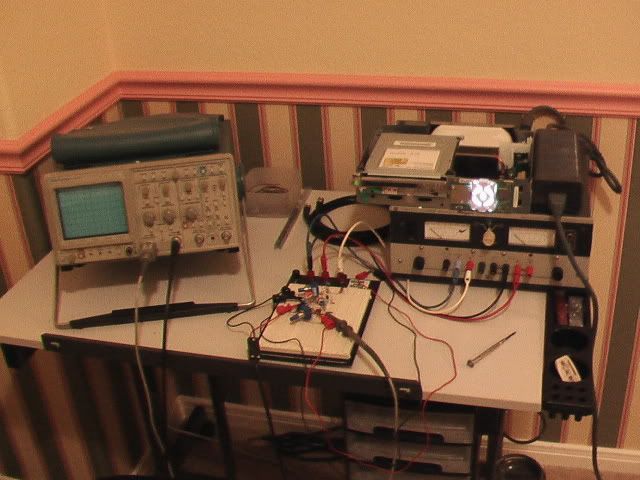

and the 360 in it's normal habitat (for me at least). Don't mind the pink chair rail, I kind of took over part of the "craft room" and turned it into my lab.
IPB Image

#11 snow rider221

snow rider221

    X-S Genius

  • Members
  • PipPipPipPip
  • 930 posts
  • Location:Phoenix
  • Xbox Version:v1.6
  • 360 version:v1 (xenon)

Posted 10 March 2006 - 07:21 AM

wow nice setup ya got there!!!

#12 G0t M4xx 21

G0t M4xx 21

    X-S Freak

  • XS-BANNED
  • PipPipPipPipPip
  • 1,990 posts
  • Location:ATX! Hook 'em Horns!
  • Xbox Version:v1.4
  • 360 version:v1 (xenon)

Posted 10 March 2006 - 07:30 AM

yeah the rest of my junk is all in my room (soldering iron, multimeter, tools, all my boxes of random parts and stuff), that room is just the overflow for all the larger stuff that won't fit anywhere else.

And then there's the guest room closet, it's piled full of all my Xbox 1 parts; motherboards, cases, dvd drives, ...

So yeah my hobby has taken over my whole house...

#13 G0t M4xx 21

G0t M4xx 21

    X-S Freak

  • XS-BANNED
  • PipPipPipPipPip
  • 1,990 posts
  • Location:ATX! Hook 'em Horns!
  • Xbox Version:v1.4
  • 360 version:v1 (xenon)

Posted 27 March 2006 - 05:00 AM

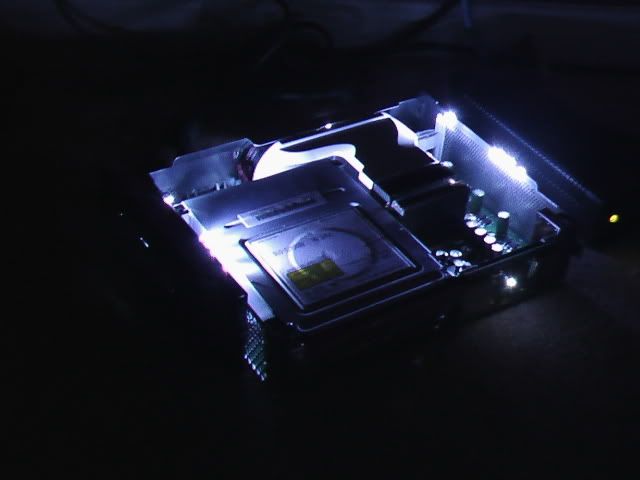

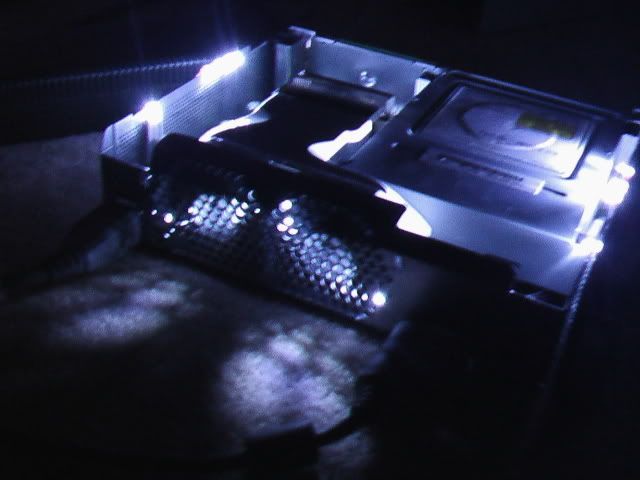

OK, it's been a while, my order of even more led's came in yesterday so I got to work on the lighting

-White ring of light (5 0603 SMT white LEDs)
-5 3mm white LEDS on each side, angled to optimize the light in to soon-to-be longhorn shaped window.
-4 3mm white LEDS in the fan, pointing out
-White "status" light on the motherboard (I found a neat place so solder a SMT 0603 LED on the motherboard so I did).
-4 3mm white LEDS under the raised part of the hard drive that says "HDD" on it, shines out of the vents. This is triggered by hard drive activity (hint: pin 11 on the hard drive power connector is activity, goes to ground when HDD is doing something. Must open up the hdd power connector to get to this pin).

video of the hdd led:
http://media.putfile...DD-Activity-LED

IPB Image
IPB Image
IPB Image

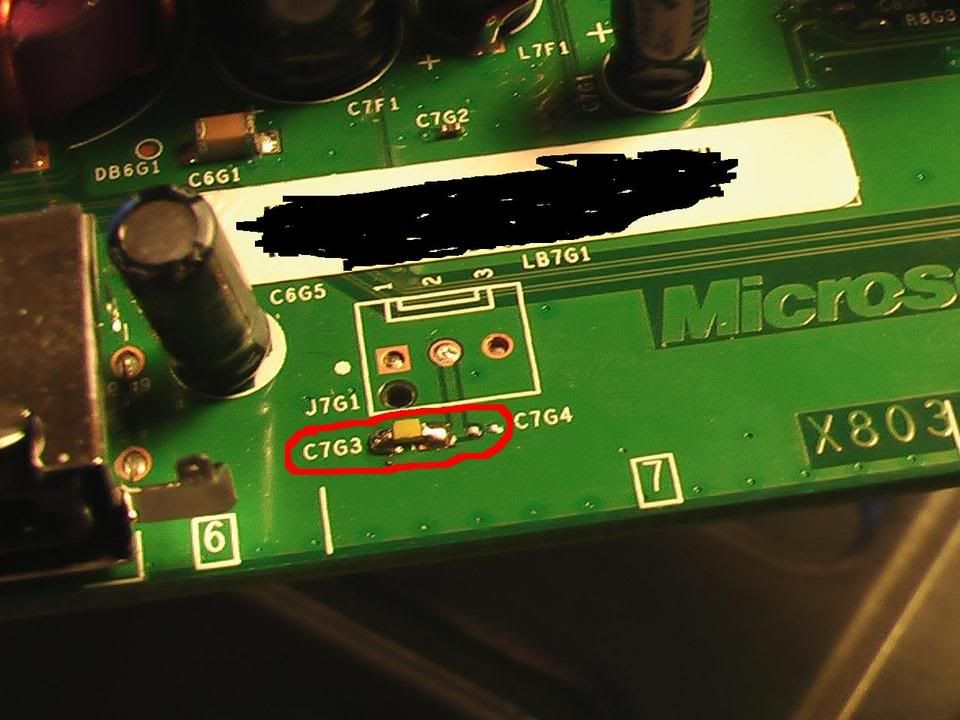

The "status LED" in the empty pad C7G3
IPB Image

Normally the center pin of that header would be jumpered to either +5v or +12v by jumpering R7V6 or R7V7 respectively, but instead I installed a 330 ohm resistor to R7V6 (5v) to power the LED.
IPB Image

Edited by G0t M4xx 21, 27 March 2006 - 05:03 AM.


#14 Thorn14

Thorn14

    X-S Young Member

  • Members
  • Pip
  • 32 posts

Posted 27 March 2006 - 07:03 AM

Nice work, and for a second, I almost thought you Sharpied over the mobo.

#15 XLostSpartanX

XLostSpartanX

    X-S Expert

  • XS-BANNED
  • PipPipPip
  • 604 posts
  • Location:Spartanburg, SC
  • Xbox Version:none
  • 360 version:v1 (xenon)

Posted 27 March 2006 - 01:42 PM

QUOTE(Thorn14 @ Mar 27 2006, 01:10 AM) View Post

Nice work, and for a second, I almost thought you Sharpied over the mobo.

LoL yea I though the same thing... and the box is looking great so far.
