Remote Controlled Xbox╣ - By Xboxexpert!


  • Please log in to reply
41 replies to this topic

#1 xboxexpert

xboxexpert

    X-S Enthusiast

  • Members
  • 7 posts

Posted 24 July 2006 - 07:49 PM

Here you go. Simply amazing!

Click here to view video on YouTube.com

Give video a few moment to upload!

IPB Image

Will ONLY work on 1.6 xbox's with 5v standby!

Edited by xboxexpert, 24 July 2006 - 07:50 PM.


#2 snow rider221

snow rider221

    X-S Genius

  • Members
  • PipPipPipPip
  • 930 posts
  • Location:Phoenix
  • Xbox Version:v1.6
  • 360 version:v1 (xenon)

Posted 24 July 2006 - 07:50 PM

oh my goodness you continue to amaze me !


Can we get some explination / general idea of what you did


edit - wait you posted this in the wrong forum... laugh.gif

xboxexpert is not perfect ! oh my !

Edited by snow rider221, 24 July 2006 - 07:51 PM.


#3 xboxexpert

xboxexpert

    X-S Enthusiast

  • Members
  • 7 posts

Posted 24 July 2006 - 07:53 PM

I'll do a tutorial when I get my hands on a 1.6 xbox for my car. For now this will just work when the xbox is ON considering 1.0-1.5 xbox's only have a standby of 3.3v and will not power my relays.

[add]

I moved this to the correct forum. I'm soo used to posting in 360 forums that I made a mistake and posted this mod in the 360 forums!

Sorry!

[end add]

#4 EverestX

EverestX

    X-S Freak

  • Members
  • PipPipPipPipPip
  • 1,351 posts
  • Location:FunkyTown
  • Interests:PC Gamer, Console Collector, Raging Movie & Cartoon Addict, full time nerd.
  • Xbox Version:v1.0
  • 360 version:none

Posted 24 July 2006 - 07:56 PM

Orange ThermalTake 80mm In a Crystal? Wierd.


Cool mod though. Now lets see you hook it up to some acctuaters (sp?) and make a dancing Xbox. smile.gif

Keep it up man.

#5 xboxexpert

xboxexpert

    X-S Enthusiast

  • Members
  • 7 posts

Posted 24 July 2006 - 07:59 PM

Orange thermaltake is the fastest fan for the xbox i can find. Sound is not an issue since its in my car trunk.

#6 -Gadget-

-Gadget-

    X-S Genius

  • Members
  • PipPipPipPip
  • 820 posts

Posted 24 July 2006 - 07:59 PM

u can easily make this work on all console versions, by using the step up circut supplyied with XIR which uses a MAX619CPA chip smile.gif
as i used this circut so i could use the IR eye that came with the MS dongle on my 1.2 smile.gif
made me a DIY XIR, with on/off modchip on/off using the standard IR eye from dongle (plus it makes it easier to intigrate the dongle too)


Mick ...

#7 xXP-UnitXx

xXP-UnitXx

    X-S Senior Member

  • XS-BANNED
  • PipPip
  • 192 posts
  • Location:USA+JAPAN=HAPPy?
  • Xbox Version:v1.1
  • 360 version:v1 (xenon)

Posted 24 July 2006 - 08:00 PM

its amazing!! i had that idea after looking at those but then know that thers no ops plugs on an xbox it could be possible but u!! great job expert hope to get in a project with you soon!

#8 xboxexpert

xboxexpert

    X-S Enthusiast

  • Members
  • 7 posts

Posted 24 July 2006 - 08:14 PM

QUOTE(-Gadget- @ Jul 24 2006, 03:06 PM) View Post

u can easily make this work on all console versions, by using the step up circut supplyied with XIR which uses a MAX619CPA chip smile.gif
as i used this circut so i could use the IR eye that came with the MS dongle on my 1.2 smile.gif
made me a DIY XIR, with on/off modchip on/off using the standard IR eye from dongle (plus it makes it easier to intigrate the dongle too)
Mick ...


Theres no external/internal mounting requierd for this. You can run a internal antenna inside the xbox and it will work from about 50ft away! smile.gif


#9 -Gadget-

-Gadget-

    X-S Genius

  • Members
  • PipPipPipPip
  • 820 posts

Posted 24 July 2006 - 08:21 PM

and how is that directed at me ? i was saying that this mod can be expanded to all version with a simply add on cicuit to pump up the voltage to 5v ... wasnt refereng about the dif between RF and IR... ??

Mick ...


#10 xboxexpert

xboxexpert

    X-S Enthusiast

  • Members
  • 7 posts

Posted 24 July 2006 - 08:34 PM

QUOTE(-Gadget- @ Jul 24 2006, 03:28 PM) View Post

and how is that directed at me ? i was saying that this mod can be expanded to all version with a simply add on cicuit to pump up the voltage to 5v ... wasnt refereng about the dif between RF and IR... ??

Mick ...



blink.gif ..... ohmy.gif ......I must have read it wrong lol. I'm working on just a few hours of sleep here sorry smile.gif

-xboxexpert

#11 War_Machine

War_Machine

    X-S Genius

  • Members
  • PipPipPipPip
  • 921 posts
  • Location:New Jeru
  • Xbox Version:v1.1
  • 360 version:none

Posted 24 July 2006 - 09:31 PM

yeah but if ur doing it just while its on u can do this with no hardware at all

xbmc... shutdown options, you can eject, reboot, or shut down with one click of the menu... if u have a wireless controller...ur doing it wirelessly lol.



i would like to know how u made that circuit though. i have two 1.6 boxes i could use that in. id crack open the remote as well, and put it in the wireless controllers. then, thatd be super pimp.

#12 nightmare84j28

nightmare84j28

    X-S Freak

  • Members
  • PipPipPipPipPip
  • 1,102 posts
  • Xbox Version:v1.6
  • 360 version:unknown

Posted 24 July 2006 - 09:36 PM

And how do you turn the xbox on war_machine? wink.gif

NVM! I read! biggrin.gif

Edited by nightmare84j28, 24 July 2006 - 09:37 PM.


#13 pablot

pablot

    X-S Freak

  • Moderator
  • PipPipPipPipPip
  • 1,275 posts
  • Location:Sweden
  • Xbox Version:v1.6
  • 360 version:none

Posted 25 July 2006 - 08:38 AM

Nice find!

RF-remotes are nice. How much did it cost you?

hehe.. using relays to power on/off the xbox is like killing mosquitos with a shotgun biggrin.gif

/pablot

#14 War_Machine

War_Machine

    X-S Genius

  • Members
  • PipPipPipPip
  • 921 posts
  • Location:New Jeru
  • Xbox Version:v1.1
  • 360 version:none

Posted 25 July 2006 - 08:47 AM

wats wrong with killing misquitos with a shotgun


pow! laugh.gif



seriously though...wheres the skematic on that circuit haha

Edited by War_Machine, 25 July 2006 - 08:48 AM.


#15 xboxexpert

xboxexpert

    X-S Enthusiast

  • Members
  • 7 posts

Posted 25 July 2006 - 11:52 AM

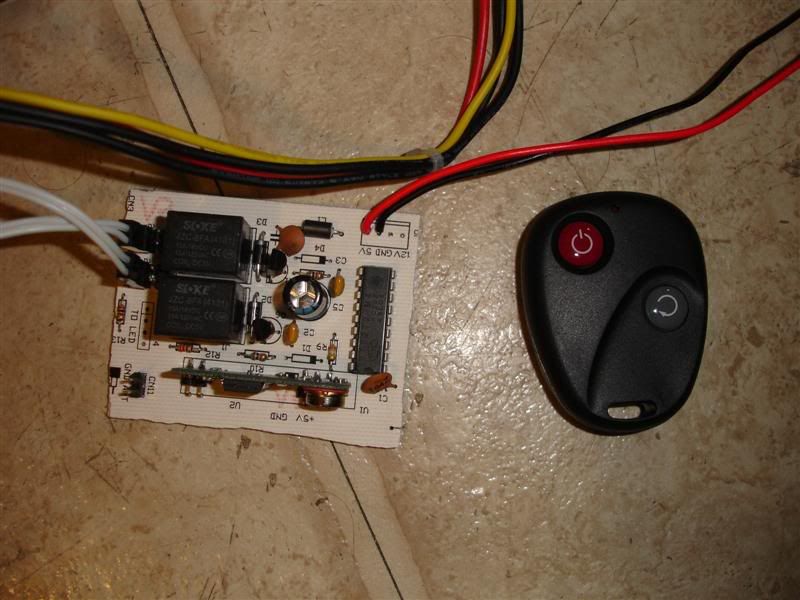

Logisys Remote Multi-Function Panel - SILVER (FP800SL)

IPB Image

Its this device hacked to shit. I took the board and looked at the traces and found out which were not needed and started to hack the board up. This device runs off 5v and ground only. Worked perfect and is VERY small. Also what I like about this is the Longer you hold the remote button the longer the Relays hold. Meaning if you have a X3 and you want to boot stock you can hold the power on the remote and it will hold the power button down for x amount of time.

-xboxexpert
