Removing The Elite Case


  • Please log in to reply
6 replies to this topic

#1 viperone

viperone

    X-S Enthusiast

  • Members
  • 15 posts

Posted 08 June 2007 - 02:10 AM

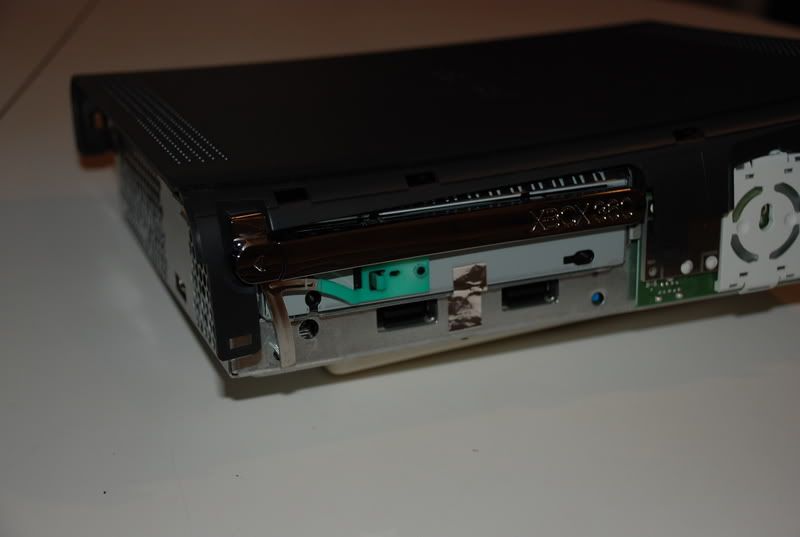

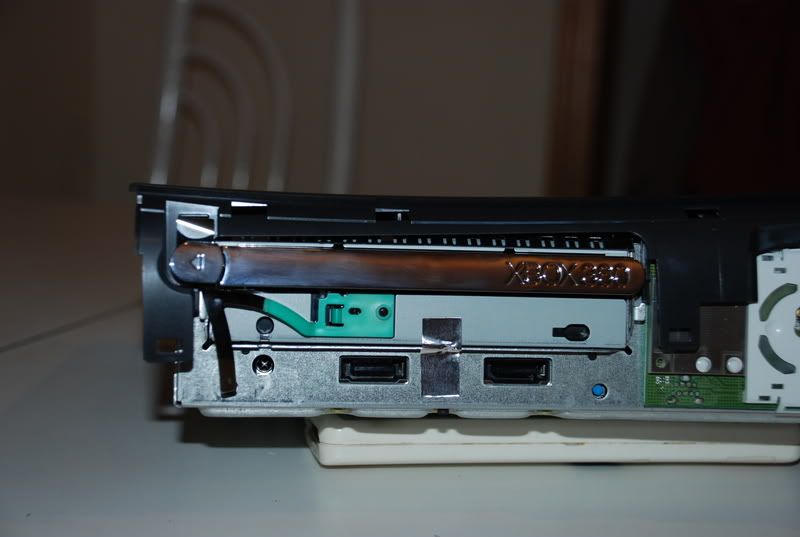

Can use some help removing the top part of my case. I cant seem to find any tutorials on the Xbox 360 Elite. I see theres a seal on the drive portion that has to lift up along with the eject button and not sure if I have to remove it or not. Im attaching a picture of where I got up to. If theres any tutorials with pictures showing how to remove it could someone send me the link? Many thanks

IPB Image

IPB Image

#2 kensterdotnet

kensterdotnet

    X-S Member

  • Members
  • Pip
  • 80 posts
  • Xbox Version:unk
  • 360 version:unknown

Posted 08 June 2007 - 02:34 AM

I thought it would be exactly the same as a regular 360. Let me try to find you something though.
http://www.llamma.co...Disassembly.htm
Third step from the bottom. I'm pretty sure it's the same process.

Edited by kensterdotnet, 08 June 2007 - 02:38 AM.


#3 grav1ty_718

grav1ty_718

    X-S X-perience

  • Members
  • PipPip
  • 330 posts
  • Location:The New City of York
  • Xbox Version:none
  • 360 version:v1 (xenon)

Posted 08 June 2007 - 02:42 AM

I cant imagine it would be different

Did you remove the 6 screws from the bottom?

You only need to remove the silver tape if you want to take the DVD out

#4 viperone

viperone

    X-S Enthusiast

  • Members
  • 15 posts

Posted 09 June 2007 - 01:13 AM

I cant believe how easy that was once i pull out the eject button! That link was just what i needed. Thank you

Edited by viperone, 09 June 2007 - 01:16 AM.


#5 viperone

viperone

    X-S Enthusiast

  • Members
  • 15 posts

Posted 13 June 2007 - 03:21 AM

Has anyone heard of any mod for the elite with the hitachi 79FK drive yet?

#6 commandersafi

commandersafi

    X-S Freak

  • Members
  • PipPipPipPipPip
  • 1,581 posts
  • Location:Houston, Texas
  • Xbox Version:none
  • 360 version:none

Posted 13 June 2007 - 05:25 AM

Currently the Hitachi 79FK can not be modded

#7 zynergi

zynergi

    X-S Enthusiast

  • Members
  • 13 posts

Posted 13 June 2007 - 11:11 AM

QUOTE(commandersafi @ Jun 13 2007, 01:01 AM) View Post

Currently the Hitachi 79FK can not be modded


Currently the v79 cannot be put into ModeB via software, you can however remove the TSOP & patchhack it with the 360 Toolbox.
