Ring Of Light Mimic And Inversion Tutorial


  • Please log in to reply
48 replies to this topic

#1 Grim187

Grim187

    X-S Freak

  • Head Moderators
  • PipPipPipPipPip
  • 1,662 posts
  • Gender:Male
  • Location:Yakima, Washington, USA
  • Xbox Version:v1.0
  • 360 version:v4.0 (jasper)

Posted 17 January 2008 - 10:32 PM

as always im not responsible for any damage You do while using this tut.

Things you will need:
4 100ohm 1/4Watt resistors
2 PnP Transistors (i use 2N3906)
???ohm Resistor (depends on the number of led you will be using)
Leds, Soldering iron, Rosin Flux, Solder, a 360, Knowledge about how to open and mod the 360.

its pretty much a self explanatory diagram, if you have any questions feel free to post or pm me.

IPB Image

IPB Image

I fab-ed one up on some prefboard, i thought it might make it a little easier seeing it actually built.

IPB Image
Here is a Video of it On.


Thanks to Pablot for the Starter Diagram.

Edit2:

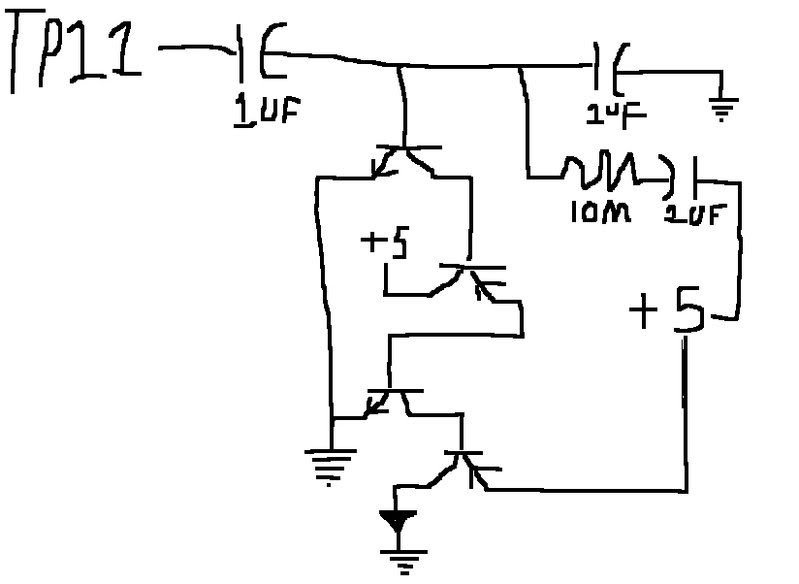

Ring of Light Inversion

Things you will need:
3 1UF 6+v Capacitor (has to be atleast 6v) (i have only tested it with Electrolytic Radial)
10meg Ohm 1/4th Watt Resistor
2 NPN 3.3v, 200ma or Greater Transistor
1 PNP 3.3v, 200ma or Greater Transistor
1 PNP 3.3v, 400ma or Greater Transistor (depending on how many leds you have hooked up)

IPB Image


Edited by Grim187, 21 April 2011 - 05:55 AM.


#2 Grim187

Grim187

    X-S Freak

  • Head Moderators
  • PipPipPipPipPip
  • 1,662 posts
  • Gender:Male
  • Location:Yakima, Washington, USA
  • Xbox Version:v1.0
  • 360 version:v4.0 (jasper)

Posted 31 January 2008 - 09:54 AM

bump for added info, no one wants to try this?

#3 ephesith

ephesith

    X-S Senior Member

  • XS-BANNED
  • PipPip
  • 153 posts
  • Xbox Version:unk
  • 360 version:unknown

Posted 01 February 2008 - 03:10 AM

looks pretty sick grim. Good concept happy.gif

Edited by ephesith, 01 February 2008 - 03:11 AM.


#4 belke

belke

    X-S X-perience

  • Members
  • PipPip
  • 481 posts
  • Xbox Version:v1.1
  • 360 version:v1 (xenon)

Posted 01 February 2008 - 05:54 AM

the diagram is confusing to me, but I can't read electronic..yet smile.gif As far as where to solder the points. If I had a 360 to mod and a more detailed tutorial (for the non electronics guy) I would defiantly use this.

#5 xxLTSBDxx

xxLTSBDxx

    X-S Enthusiast

  • Members
  • 24 posts
  • Xbox Version:none
  • 360 version:v2 (zephyr)

Posted 01 February 2008 - 06:09 AM

looks really cool but i could never figure out how to do it. happy.gif

#6 Grim187

Grim187

    X-S Freak

  • Head Moderators
  • PipPipPipPipPip
  • 1,662 posts
  • Gender:Male
  • Location:Yakima, Washington, USA
  • Xbox Version:v1.0
  • 360 version:v4.0 (jasper)

Posted 02 February 2008 - 08:15 AM

well im board so i will wire up something a little easier to fallow.

alright, i put up a new diagram that doesn't look so complex, i figure if you cant read that you probably shouldn't be doing this mod.

Edited by Grim187, 02 February 2008 - 10:13 AM.


#7 grim_d

grim_d

    The Grim Gopher

  • Head Moderators
  • PipPipPipPipPipPipPipPip
  • 4,483 posts
  • Gender:Male
  • Location:Scotland
  • Interests:enjoying life.
  • Xbox Version:v1.6
  • 360 version:v1 (xenon)

Posted 02 February 2008 - 01:31 PM

thats really cool im surprised it wasnt done sooner!

this could be a very nice feature for any nicely modded box.

#8 belke

belke

    X-S X-perience

  • Members
  • PipPip
  • 481 posts
  • Xbox Version:v1.1
  • 360 version:v1 (xenon)

Posted 02 February 2008 - 08:19 PM

now I understand, good diagram. Hopefully someone uses this

#9 sinister slipknot

sinister slipknot

    X-S Freak

  • Members
  • PipPipPipPipPip
  • 1,461 posts
  • Location:Albion
  • Xbox Version:v1.4
  • 360 version:v4.0 (jasper)

Posted 03 February 2008 - 03:15 PM

Nice tut, one question tho, in the vid, is just me or does your led's go (from left to right) 3,4,2,1?

Edited by sinister slipknot, 03 February 2008 - 03:15 PM.


#10 potato10

potato10

    X-S Expert

  • Members
  • PipPipPip
  • 608 posts
  • Location:in an icecube
  • Interests:modding and blowing up xboxs
  • Xbox Version:v1.0
  • 360 version:v1 (xenon)

Posted 04 February 2008 - 01:41 AM

so can this be used in anything? im guessing you just used the 360 for power or is that wrong?

#11 Grim187

Grim187

    X-S Freak

  • Head Moderators
  • PipPipPipPipPip
  • 1,662 posts
  • Gender:Male
  • Location:Yakima, Washington, USA
  • Xbox Version:v1.0
  • 360 version:v4.0 (jasper)

Posted 04 February 2008 - 11:31 PM

sinister slipknot: i didn't wire them to be in a right, i would just showing proof of concept.

potato10: Anything?, like what? TV? car? house? street?


#12 beetlemaniac

beetlemaniac

    X-S Enthusiast

  • Members
  • 23 posts

Posted 23 July 2008 - 08:09 PM

How should I wire a single LED to function the same way as D5? Thanks!

#13 Retman

Retman

    X-S Senior Member

  • Members
  • PipPip
  • 156 posts
  • Xbox Version:unk
  • 360 version:v3.0 (falcon)

Posted 23 July 2008 - 10:34 PM

A good mod using this would be to wire a led tray (one of those boards with a few leds on it) to each side and when you turn your 360 on it will looks sweet as.

Thanks for the guide

#14 Gothguy

Gothguy

    X-S Young Member

  • Members
  • Pip
  • 43 posts
  • Location:Richmond, Virginia
  • Xbox Version:none
  • 360 version:v2 (zephyr)

Posted 24 July 2008 - 02:25 AM

wow very nice



#15 HackerSupreme

HackerSupreme

    X-S Expert

  • XS-BANNED
  • PipPipPip
  • 503 posts
  • Xbox Version:none
  • 360 version:v1 (xenon)

Posted 26 July 2008 - 04:51 AM

Why can't you just take off the SMDs and solder extension wires?

Or just solder wires to the SMD pads with theSMD leds on? would be a little messy, but you would haven't to screw with transistors....
