Lpc Rebuild Board Duo X2


  • Please log in to reply
3 replies to this topic

#1 pcexpert2

pcexpert2

    X-S Young Member

  • Members
  • Pip
  • 30 posts
  • Xbox Version:v1.6
  • 360 version:v1 (xenon)

Posted 09 July 2008 - 07:01 AM

also is there an easier way to rebuild lpc port on 1.6 also will it give good results if i use one of those lpc rebuild board thingies for my duo x2 or any other you can recommend

Edited by pcexpert2, 09 July 2008 - 07:03 AM.


#2 Chancer

Chancer

    Don't You Trust me?

  • Head Moderator
  • PipPipPipPipPipPipPipPipPipPipPipPipPipPipPip
  • 18,687 posts
  • Xbox Version:v1.6
  • 360 version:v3.0 (falcon)

Posted 09 July 2008 - 10:11 AM

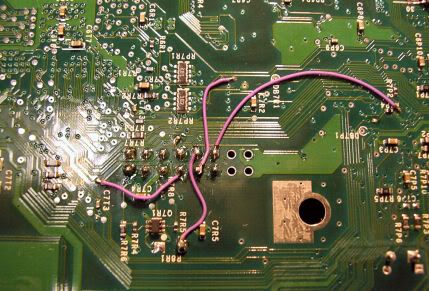

Just rebuild with wires
Example
IPB Image

the points are
IPB Image

Edited by Chancer, 09 July 2008 - 10:12 AM.


#3 justtaint

justtaint

    X-S Genius

  • Members
  • PipPipPipPip
  • 944 posts
  • Location:Chicago
  • Xbox Version:v1.6
  • 360 version:v1 (xenon)

Posted 09 July 2008 - 07:42 PM

I've never had a problem using the lpc rebuild that comes with the DuoX2's. Just make sure when you're soldering the pinheader that you don't "cake" the solder on. Just enough solder to get a good connection, then solder on the LPC rebuild. If you use too much solder on the pinheader the LPC board sticks out from the motherboard and makes connecting the LPC rebuild to the motherboard more difficult.

Edited by justtaint, 09 July 2008 - 07:44 PM.


#4 pcexpert2

pcexpert2

    X-S Young Member

  • Members
  • Pip
  • 30 posts
  • Xbox Version:v1.6
  • 360 version:v1 (xenon)

Posted 10 July 2008 - 12:52 AM

thanks chanser
