When i was doing the ring of light mod, i originally started by solder bathing the leds which worked

But for some reason i started using desolder braid on two of the led spots. Now where the solder pads use to be is black squares and the solder wont stick to it.

What should i do?

Where can i draw the power from?



#2 Arakon

Arakon

    X-S Hacker

  • Members
  • PipPipPipPipPipPip
  • 2,336 posts

Posted 13 November 2008 - 08:32 PM

follow the traces and find another solderable spot.


#3 Exige_

Exige_

    X-S Expert

  • Members
  • PipPipPip
  • 717 posts
  • Location:VA
  • Xbox Version:v1.0
  • 360 version:unknown

Posted 13 November 2008 - 09:50 PM

And you might need to scrape away from trace coating to solder to it. And when you need to solder that, put the solder wire right up to the trace and melt it right on to it, so that the rosin-core keeps it securely on there.

#4 RDC

RDC

    X-S Seraphic

  • Head Moderators
  • PipPipPipPipPipPipPipPipPipPipPipPip
  • 8,789 posts
  • Gender:Male
  • Location:VA
  • Xbox Version:v1.0
  • 360 version:v1 (xenon)

Posted 14 November 2008 - 01:02 AM

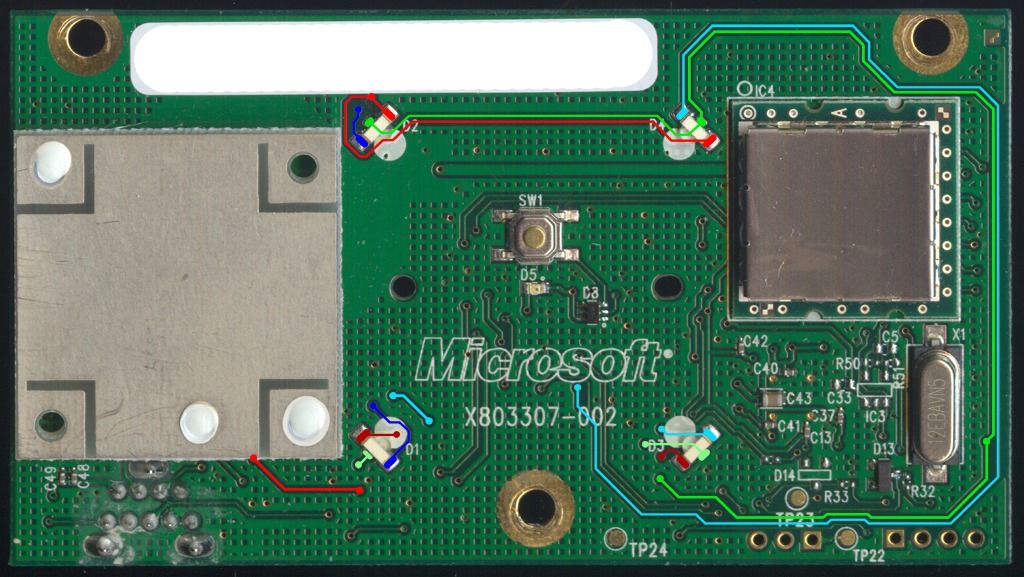

The 'black squares' are the circuit board, you've ripped the pads right up, should have stuck with the method that was working. wink.gif

Where you'll have to go about soldering a jumper wire in to fix the problem depends on which pads were torn up..

IPB Image

IPB Image

#5 me_ntal

me_ntal

    X-S Young Member

  • Members
  • Pip
  • 37 posts

Posted 14 November 2008 - 12:16 PM

ripped the pads on d1 and d2.

How do i go about doing that? any tutorials?

#6 RDC

RDC

    X-S Seraphic

  • Head Moderators
  • PipPipPipPipPipPipPipPipPipPipPipPip
  • 8,789 posts
  • Gender:Male
  • Location:VA
  • Xbox Version:v1.0
  • 360 version:v1 (xenon)

Posted 14 November 2008 - 01:55 PM

Trace repair thread is in the Tutorials section. The part that deals with the 360 controller's LEDs is about the same as what you'll need to do to repair your problem, or you can go back to the easiest spot to solder a wire to that are shown in the above pics, since they're all traced out there.

Edited by RDC, 14 November 2008 - 01:56 PM.


#7 crash_2012

crash_2012

    X-S Senior Member

  • Members
  • PipPip
  • 193 posts
  • Location:stuck in the matrix. trinity wont get off the phone, damn busy signal.
  • Interests:computers, and almost anything technical
  • Xbox Version:v1.0
  • 360 version:v1 (xenon)

Posted 16 November 2008 - 09:22 AM

@RDC

did you do those diagrams yourself?? or you found them??? either way, kudos to the creator of those.. LOL

#8 RDC

RDC

    X-S Seraphic

  • Head Moderators
  • PipPipPipPipPipPipPipPipPipPipPipPip
  • 8,789 posts
  • Gender:Male
  • Location:VA
  • Xbox Version:v1.0
  • 360 version:v1 (xenon)

Posted 16 November 2008 - 10:32 AM

QUOTE(crash_2012 @ Nov 16 2008, 03:58 AM) View Post

@RDC

did you do those diagrams yourself?? or you found them??? either way, kudos to the creator of those.. LOL

I made them, and quite a few others in the Tutorials section, scanned the board and then traced them all out for whatever was needed.
