Adventures In Fighting An Oow E74


  • Please log in to reply
6 replies to this topic

#1 XirXes

XirXes

    X-S Enthusiast

  • Members
  • 7 posts
  • Xbox Version:v1.6
  • 360 version:v3.0 (falcon)

Posted 04 November 2009 - 07:45 AM

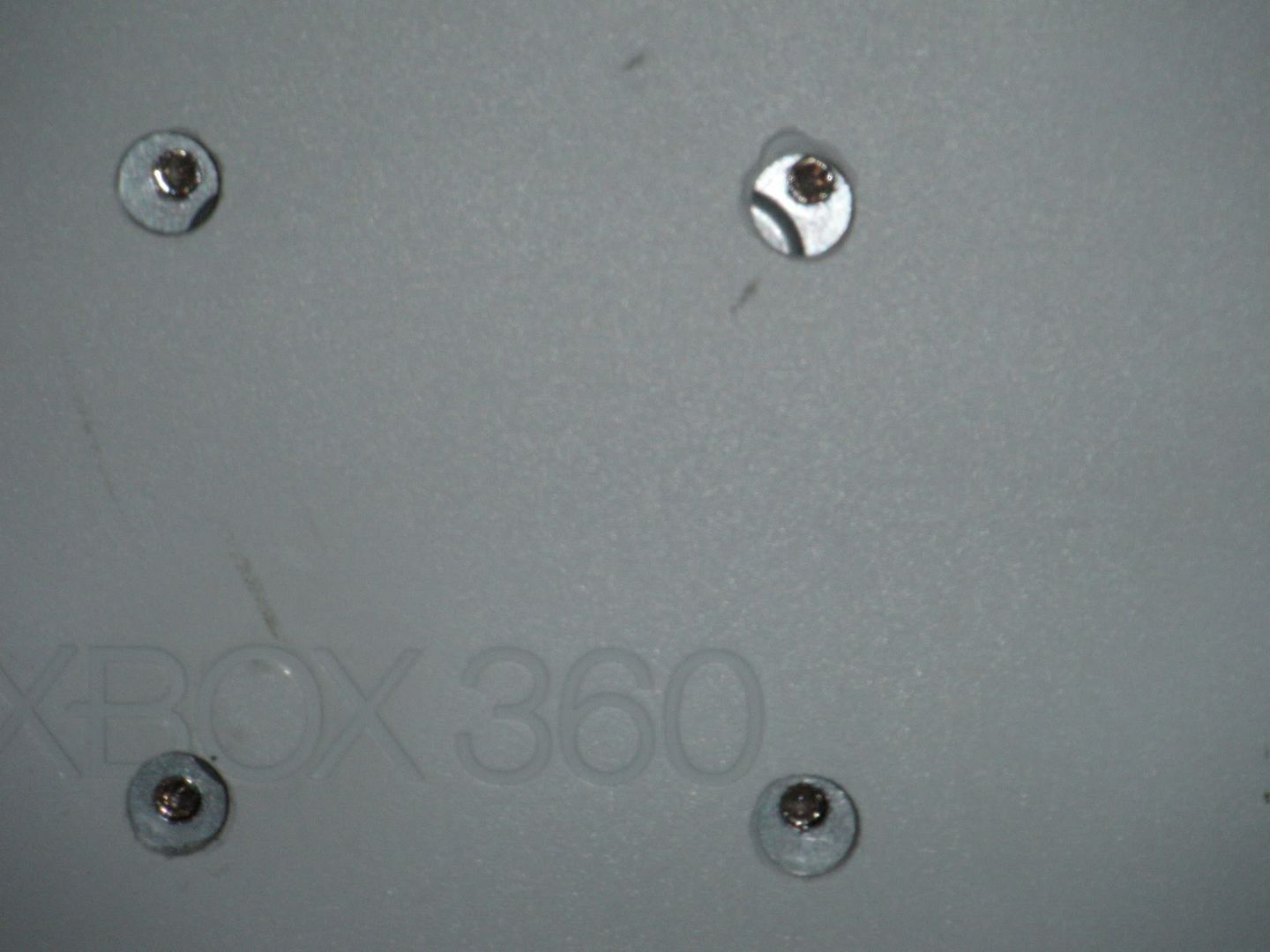

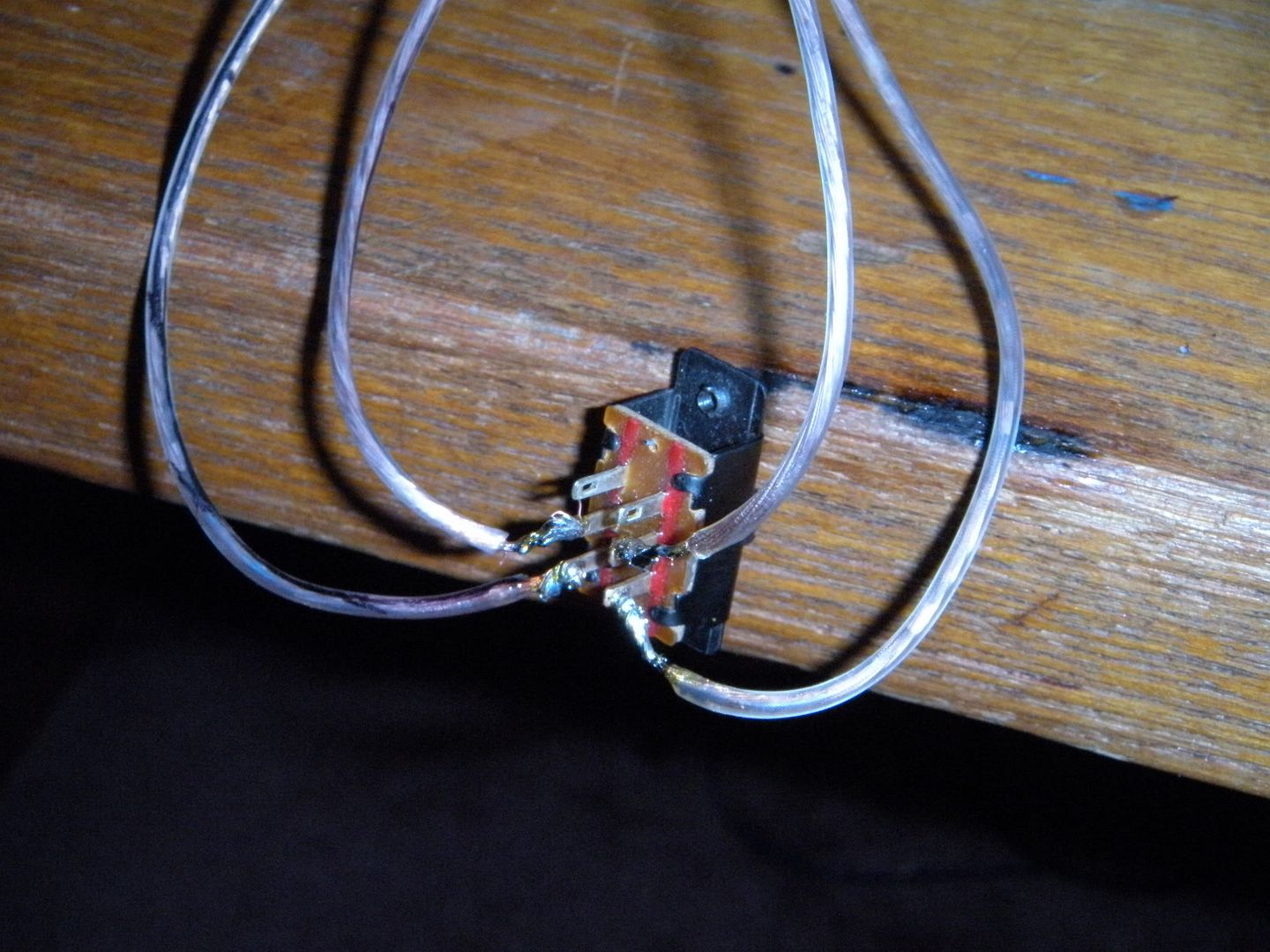

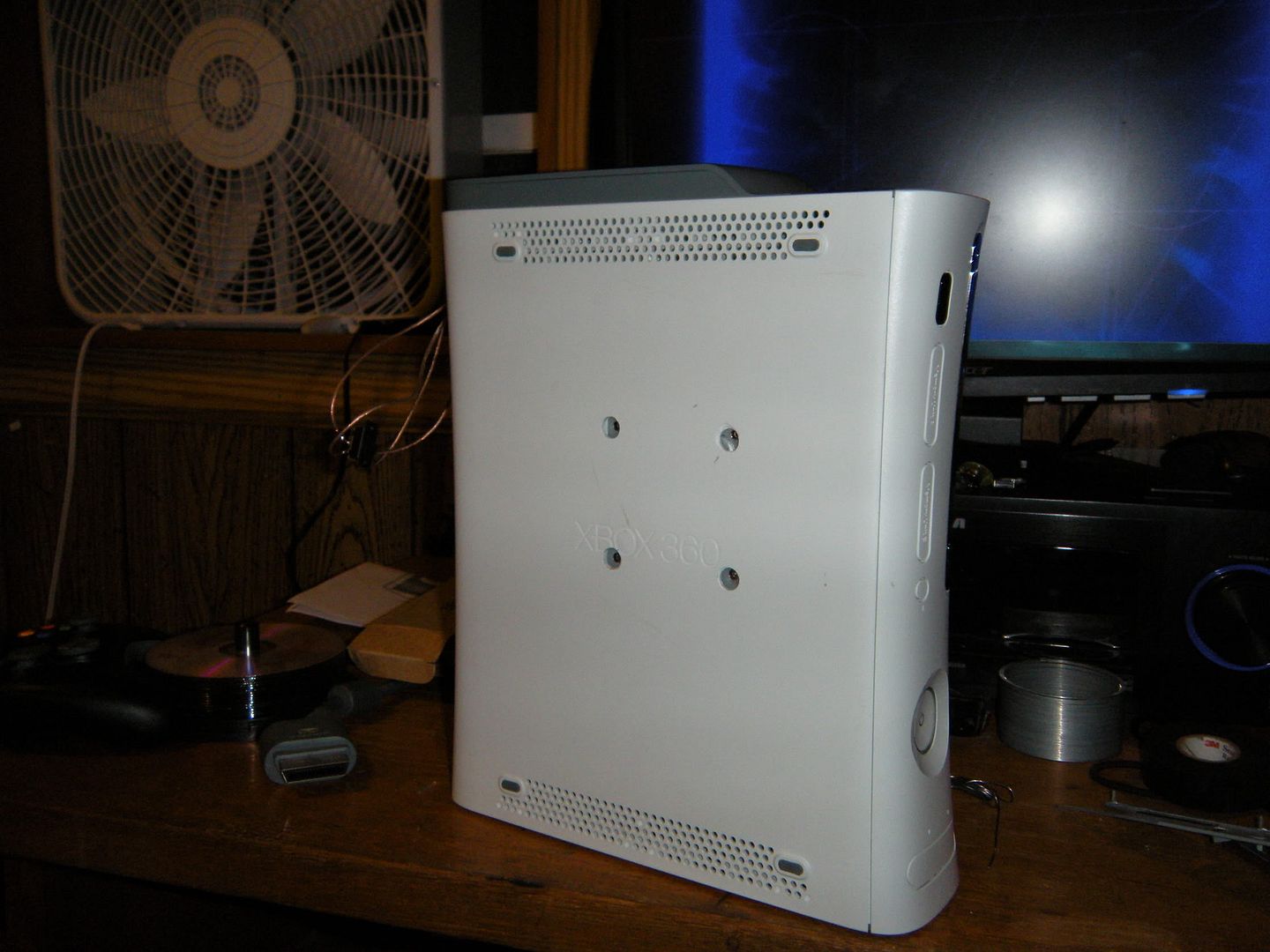

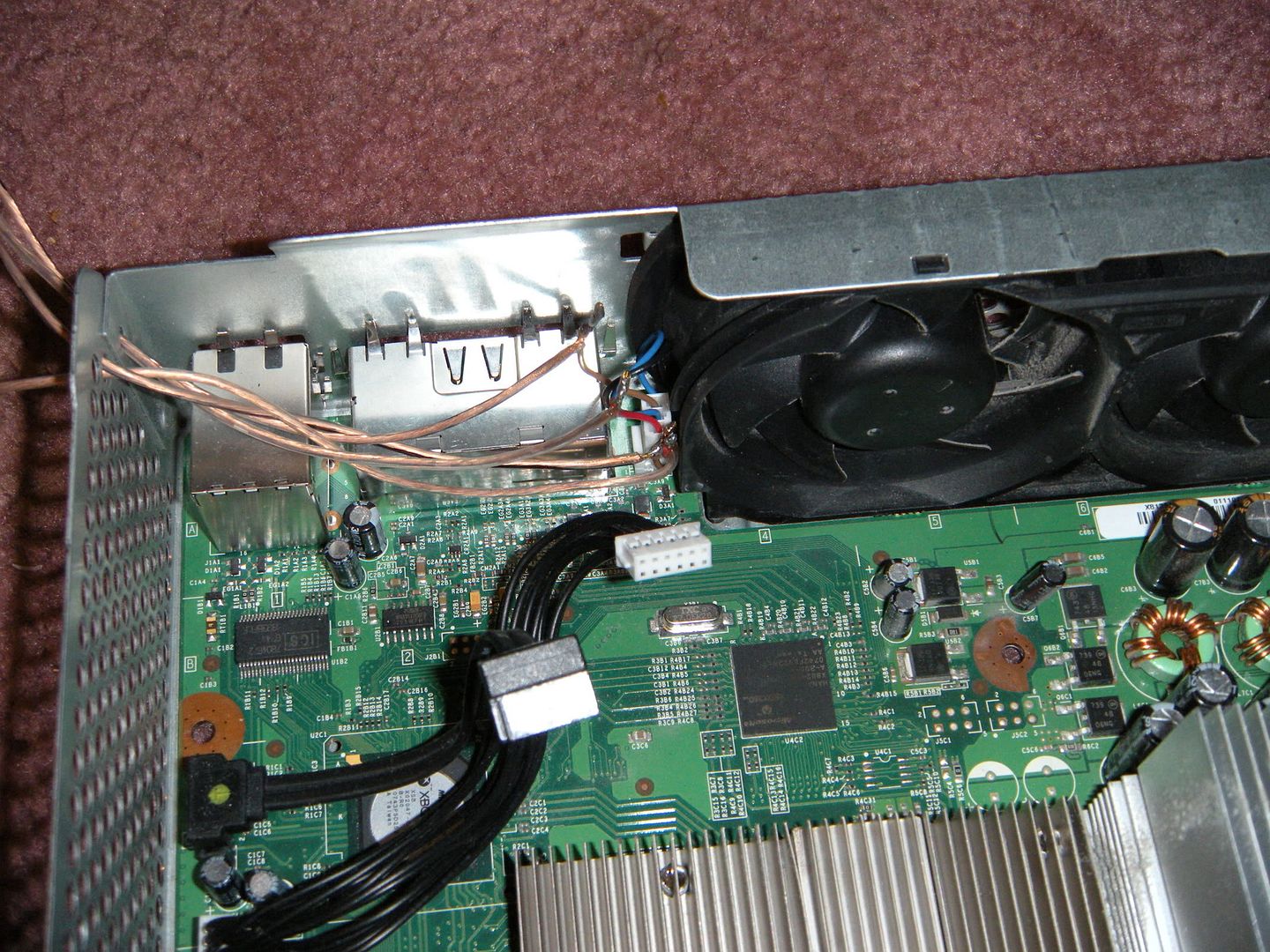

About seven or eight months ago my 360 E74'd. Usually that would mean tossing it in a coffin and sending it off to Microsoft but that was a no go as my warranty was void. So I elected to fight it. I purchased an X Clamp replacement kit and installed it. Oh happy day, the damn thing worked again... for a while. Not to long after the fix I began to get pinkish scanlines. I was able to fix them by completely removing my board from the casing and adjusting the tension on the GPU. The problem soon became a recurring one and I elected to drill the holes under the GPU screws bigger so I wouldn't have to take my board out of the metal casing. That worked for a while and my 360 stayed out of its casing for quite some time. The E74s hadn't stopped being a problem just not a frequent one. I discovered that unplugging the fans and letting the console over heat would allow it to boot again. After a while I got sick of the console being naked so I drilled four holes in the plastic casing to access the holes I had drilled earlier. The console regained its casing and worked for a while. I'd get an E74 every once in a while but in general I was able to play my games. Then it began E74ing fairly frequently. It lost its case again so I could over heat it. Again I grew tired of it being naked so I decided to add a switch so that I could turn off the fan from outside the case. That was tonight, check out the pictures.

IPB Image
IPB Image
IPB Image
IPB Image

Edited by XirXes, 04 November 2009 - 07:56 AM.


#2 Snake126

Snake126

    X-S Young Member

  • Members
  • Pip
  • 32 posts

Posted 04 November 2009 - 06:31 PM

Have you tried a reflow?

#3 XirXes

XirXes

    X-S Enthusiast

  • Members
  • 7 posts
  • Xbox Version:v1.6
  • 360 version:v3.0 (falcon)

Posted 04 November 2009 - 07:17 PM

QUOTE(Snake126 @ Nov 4 2009, 10:31 AM) View Post

Have you tried a reflow?


I don't know what that is. So no.

#4 martin_hawk

martin_hawk

    X-S Enthusiast

  • Members
  • 23 posts
  • Xbox Version:unk
  • 360 version:v4.0 (jasper)

Posted 04 November 2009 - 11:38 PM

maybe this would help:
http://www.solder.ne...l/reballing.asp

#5 WorldFormula

WorldFormula

    X-S Senior Member

  • Members
  • PipPip
  • 196 posts
  • Xbox Version:none
  • 360 version:v4.0 (jasper)

Posted 04 November 2009 - 11:53 PM

That poor xbox 360...

#6 XirXes

XirXes

    X-S Enthusiast

  • Members
  • 7 posts
  • Xbox Version:v1.6
  • 360 version:v3.0 (falcon)

Posted 05 November 2009 - 01:46 AM

QUOTE(WorldFormula @ Nov 4 2009, 03:53 PM) View Post

That poor xbox 360...


Its its own fault.

#7 MadMaxGR

MadMaxGR

    X-S Hacker

  • Members
  • PipPipPipPipPipPip
  • 2,803 posts
  • Location:Cyprus
  • Xbox Version:v1.6
  • 360 version:v4.0 (jasper)

Posted 05 November 2009 - 09:48 AM

Try to do Llama's reflow trick. To do full reballing, you will need rework station + balls + flux + skills. I don't think you have anything of these, so do Llama's tutorial trick.
