Wip: Plexibox


  • Please log in to reply
15 replies to this topic

#1 killer skittle

killer skittle

    X-S Senior Member

  • Members
  • PipPip
  • 245 posts
  • Location:Atlanta, GA
  • Xbox Version:v1.2
  • 360 version:v1 (xenon)

Posted 05 May 2010 - 03:24 AM

well i see people put plexi glas windows in there xboxs all the time but no one has made one entirely out of plexiglas, thats where i come in smile.gif

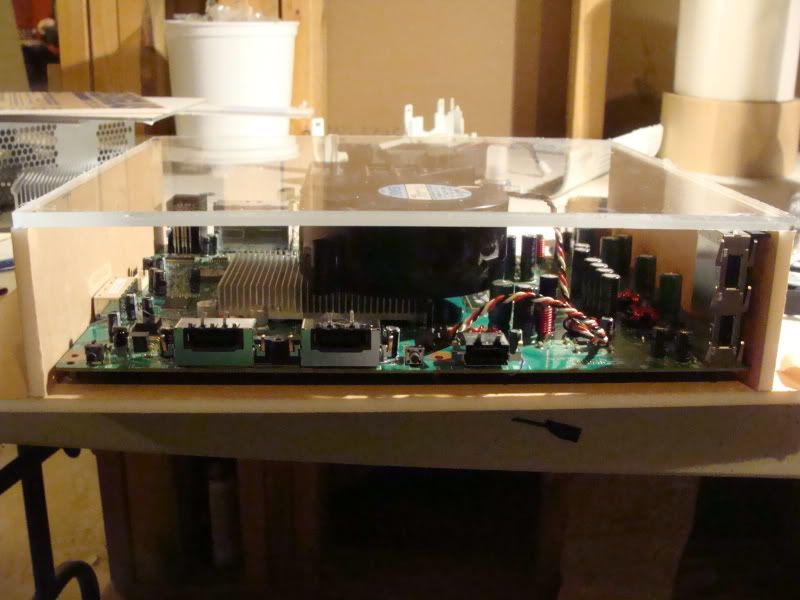

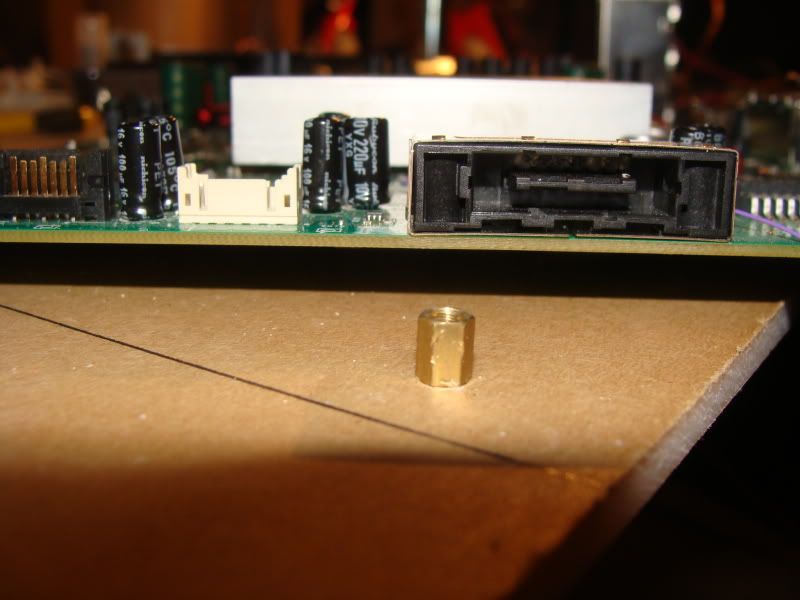

this is how it is mounted to the bottom sheet of plexi
IPB Image

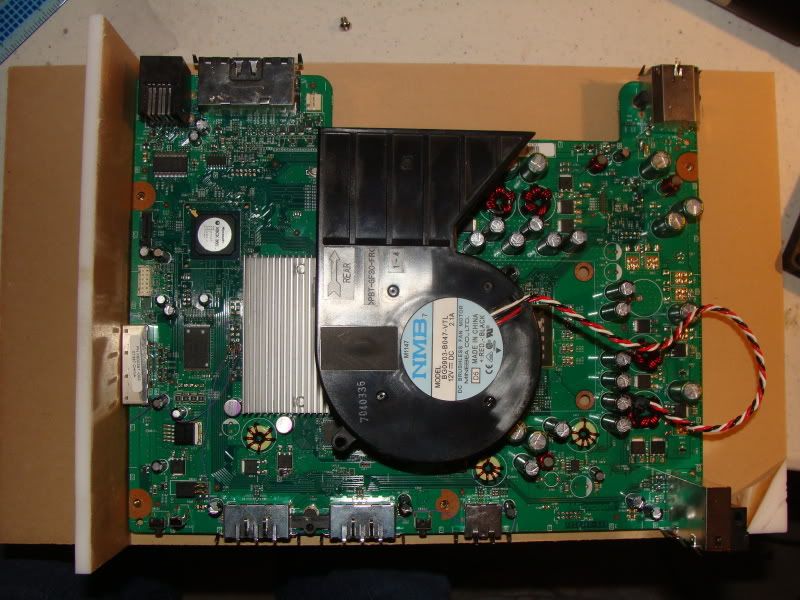

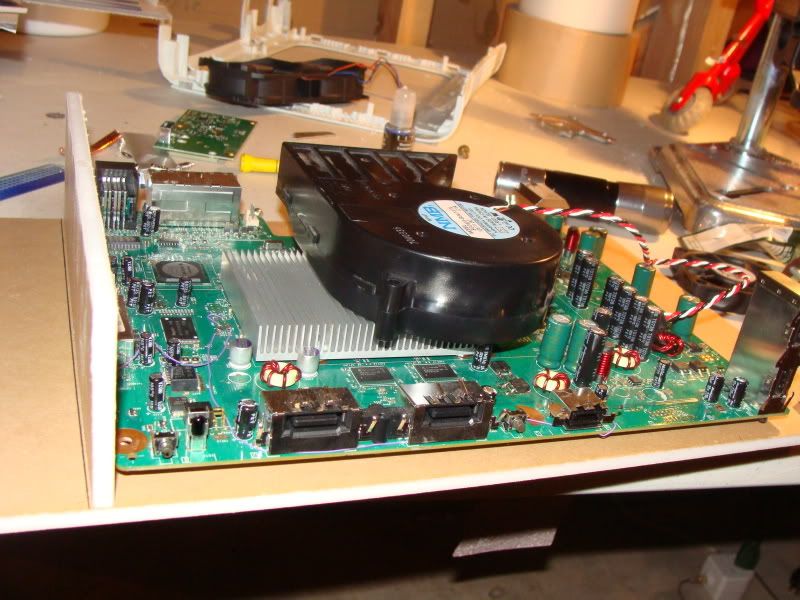

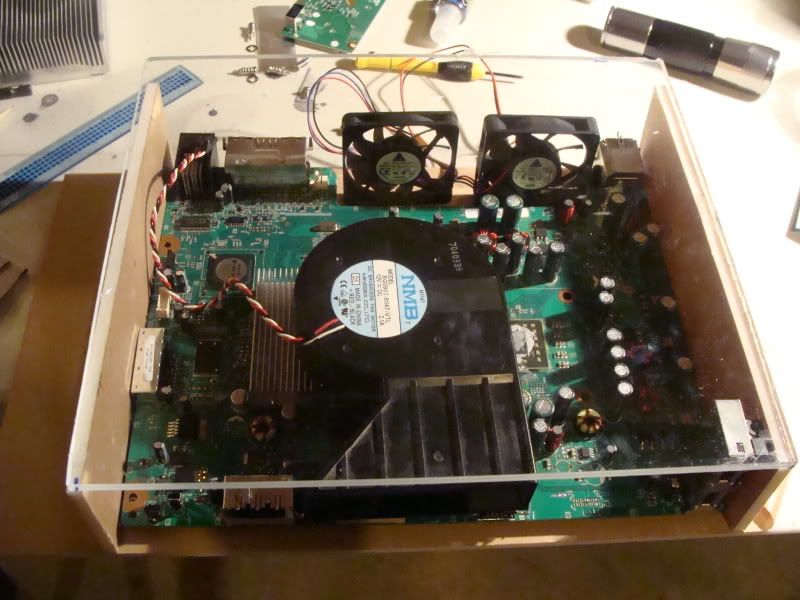

i have a fan concept of a blower fan that sucks hot air of the cpu and gpu and pushes it to the back of 360 and out of the case
Although i dont know what to do for the CPU side because the case isnt very tall and wont fit the normal heatsink, any help/ideas please:
IPB Image
IPB Image
IPB Image
IPB Image

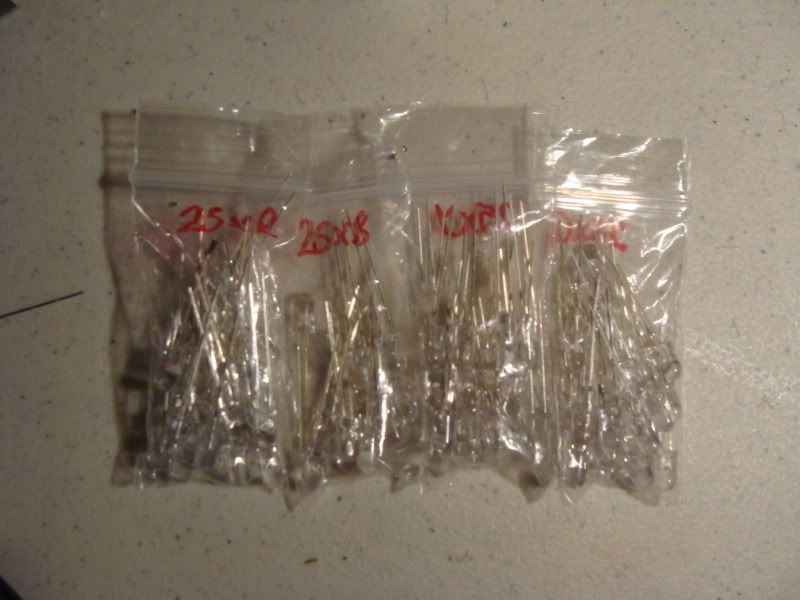

and dont you worry there is no shortage of leds, this thing is gonna glow like the moon cool.gif
IPB Image


and as for the plexi glas types: it will be white plexi (which light still shines through) all the way around and on bottom, and the top peice will be a peice of clear smile.gif
...wish me luck


#2 mgeno216

mgeno216

    X-S Member

  • Members
  • Pip
  • 126 posts
  • Location:Wheaton, Illinois
  • Xbox Version:unk
  • 360 version:v3.0 (falcon)

Posted 05 May 2010 - 04:29 AM

Hate to break it to you, but I something like this on another forum about a year ago. It didn't look nice so you can win first nice looking plexiglass case. So far it looks good. Keep it up and you will win

Mike

#3 Copter64

Copter64

    X-S Member

  • Members
  • Pip
  • 128 posts
  • Location:B'hind u, withanife LOL
  • Xbox Version:v1.0
  • 360 version:v3.0 (falcon)

Posted 05 May 2010 - 01:02 PM

Use the GPU heatsink for the CPU as well, but you would really want to mod the caps to have them out of the way of airflow.

The next issue is that you would want to seal the top of the heatsink and leave the sides exposed so the the turbine fans get the most air through the heatsink fans.

If you can find a 2nd blower just like that I would mod the exhaust duck and sit them side by side.

One thing that would be needed though is some time of duct on top of the heatsinks to make a good seal but again leave the sides exposed.

One issue with taking the air to the middle of the heatsink is that you won't get a good amount of the heat coming from the core of the heatsink. That means the best method to do with those blowers is if you had a duct that covers the top of the heatsinks and then had the air sucked one of the sides, this way the air passes all the way through the heatsinks and you get the most air put through them.


I have ideas for others but nor the time or money for myself sad.gif

#4 Accord

Accord

    X-S Senior Member

  • Validating
  • PipPip
  • 213 posts
  • Location:Chicago, IL
  • Xbox Version:none
  • 360 version:v4.0 (jasper)

Posted 05 May 2010 - 04:41 PM

Just make sure that whatever you build isn't sealed. You'll want to get in there every few weeks to get the dust out.

I love the idea of clear cases, just not the visual maintenance needed.

#5 phenoptix

phenoptix

    X-S Senior Member

  • Members
  • PipPip
  • 251 posts
  • Xbox Version:unk
  • 360 version:v1 (xenon)

Posted 05 May 2010 - 06:19 PM

Hey good luck with this! I recognise those LEDs!
Any problems of help needed let us know.

#6 LiTHiUM0XiD3

LiTHiUM0XiD3

    X-S Senior Member

  • Members
  • PipPip
  • 151 posts

Posted 05 May 2010 - 06:52 PM

you really wont have to yank it open all the time if u put the time in first... proper airflow.. and filters..
make sure you aint blowing in more air than your takin out smile.gif

if ya keep to those rules.. u shouldnt rly have an issue keepin it clean

#7 illusivex88

illusivex88

    X-S Enthusiast

  • Members
  • 1 posts

Posted 05 May 2010 - 08:59 PM

I like the looks of this box!

#8 killer skittle

killer skittle

    X-S Senior Member

  • Members
  • PipPip
  • 245 posts
  • Location:Atlanta, GA
  • Xbox Version:v1.2
  • 360 version:v1 (xenon)

Posted 05 May 2010 - 11:05 PM

Thx to all for your tips and pointers, i will have another update tonight for all of yall smile.gif i am really taking the time in this case mod....so it will look good smile.gif and yes phenoptix, those are your leds...SO IM REPRESENTIN smile.gif

and as for the case it will be all screwed together, so easy access

i still haven't had an idea for the ROL... any ideas please post smile.gif

i think this should be an "xbox-scene recommendation" xbox, so all ideas are welcome...ill probably use some of them smile.gif

#9 LiTHiUM0XiD3

LiTHiUM0XiD3

    X-S Senior Member

  • Members
  • PipPip
  • 151 posts

Posted 06 May 2010 - 06:39 AM

i'd say cable wrappin is a must... if your gunna have it clear on all sides lol
u have to take snazzy shit to the max man lol

#10 nm*13

nm*13

    X-S Senior Member

  • Members
  • PipPip
  • 272 posts
  • Xbox Version:v1.4
  • 360 version:v4.0 (jasper)

Posted 07 May 2010 - 01:19 AM

ive seen a xbox 360 laptop in a all plexi case but never just a xbox 360. if you do this right its gonna look so good. dont rush it.

#11 B1RcH3LL

B1RcH3LL

    X-S Enthusiast

  • Members
  • 19 posts

Posted 07 May 2010 - 01:34 AM

Here's one but its kinda ugly lol

IPB Image

#12 killer skittle

killer skittle

    X-S Senior Member

  • Members
  • PipPip
  • 245 posts
  • Location:Atlanta, GA
  • Xbox Version:v1.2
  • 360 version:v1 (xenon)

Posted 11 May 2010 - 03:54 AM

UPDATE!

Here you go, i have completed about 70% of the screwing of the plexi together...thats about it lol, and came up with a new way of cooling, idk what you say (no offense) i just wanna try it out: tongue.gif
IPB Image
IPB Image
IPB Image
IPB Image

so basically for the cooling im gonna have a piece of plexi right above the heat sinks, i will put the blower fan right above them to suck the hot air off of them and the cool air will come from the sides under the middle plexi sheet...i have a pic that will better explain smile.gif
IPB Image
IPB Image
IPB Image
IPB Image

#13 crimsondynamo329

crimsondynamo329

    X-S Member

  • Members
  • Pip
  • 120 posts
  • Location:Virginia, United States
  • Xbox Version:none
  • 360 version:v3.0 (falcon)

Posted 12 May 2010 - 09:32 PM

Wouldn't it be better to have a fan on top of each heatsink?

#14 killer skittle

killer skittle

    X-S Senior Member

  • Members
  • PipPip
  • 245 posts
  • Location:Atlanta, GA
  • Xbox Version:v1.2
  • 360 version:v1 (xenon)

Posted 13 May 2010 - 01:38 AM

The blower fan pulls more air than those 2 fans combine! lol

#15 Grim187

Grim187

    X-S Freak

  • Head Moderators
  • PipPipPipPipPip
  • 1,663 posts
  • Gender:Male
  • Location:Yakima, Washington, USA
  • Xbox Version:v1.0
  • 360 version:v4.0 (jasper)

Posted 13 May 2010 - 02:19 AM

QUOTE(crimsondynamo329 @ May 12 2010, 01:32 PM) View Post

Wouldn't it be better to have a fan on top of each heatsink?

one blower is enough, it should probably be a 120mm rather then the 80mm he has tho.

QUOTE(killer skittle @ May 12 2010, 05:38 PM) View Post

The blower fan pulls more air than those 2 fans combine! lol

thats not saying much, 50mm fans suck.

QUOTE(killer skittle @ May 10 2010, 07:54 PM) View Post

IPB Image

i hope this is a jtaged box (looks like it is from the 1tb hdd you got there smile.gif ) so you can monitor the actual temps of the procs, you will probably have to run that fan at 12v to keep the console under 140F...assuming its a falcon (its either a falcon or jasper).

looks good, keep us updated.

Edited by Grim187, 13 May 2010 - 02:22 AM.
