Halo 4 Slim


  • Please log in to reply
10 replies to this topic

#1 Kr3w

Kr3w

    X-S Member

  • Members
  • Pip
  • 73 posts
  • Location:Canada
  • Xbox Version:v1.0
  • 360 version:v1 (xenon)

Posted 01 October 2012 - 06:11 AM

with the release of halo 4 coming up i decided i started looking for some ideas to try on my new slim...after watching the trailer a few times a certain scene stuck out where the promethean knight flips open his mask/helmet/head, the orange skulls pops out and screams, i started with the basic halo 4 logo on the front above the fan, and im doing the promethean knight on the backside. im going to have the mask open in the center and be on hinges to expose the orange skull...i still have to cut out the head of the knight and do all the mods to it

the scene i was talking about plus the quick outline
IPB Image

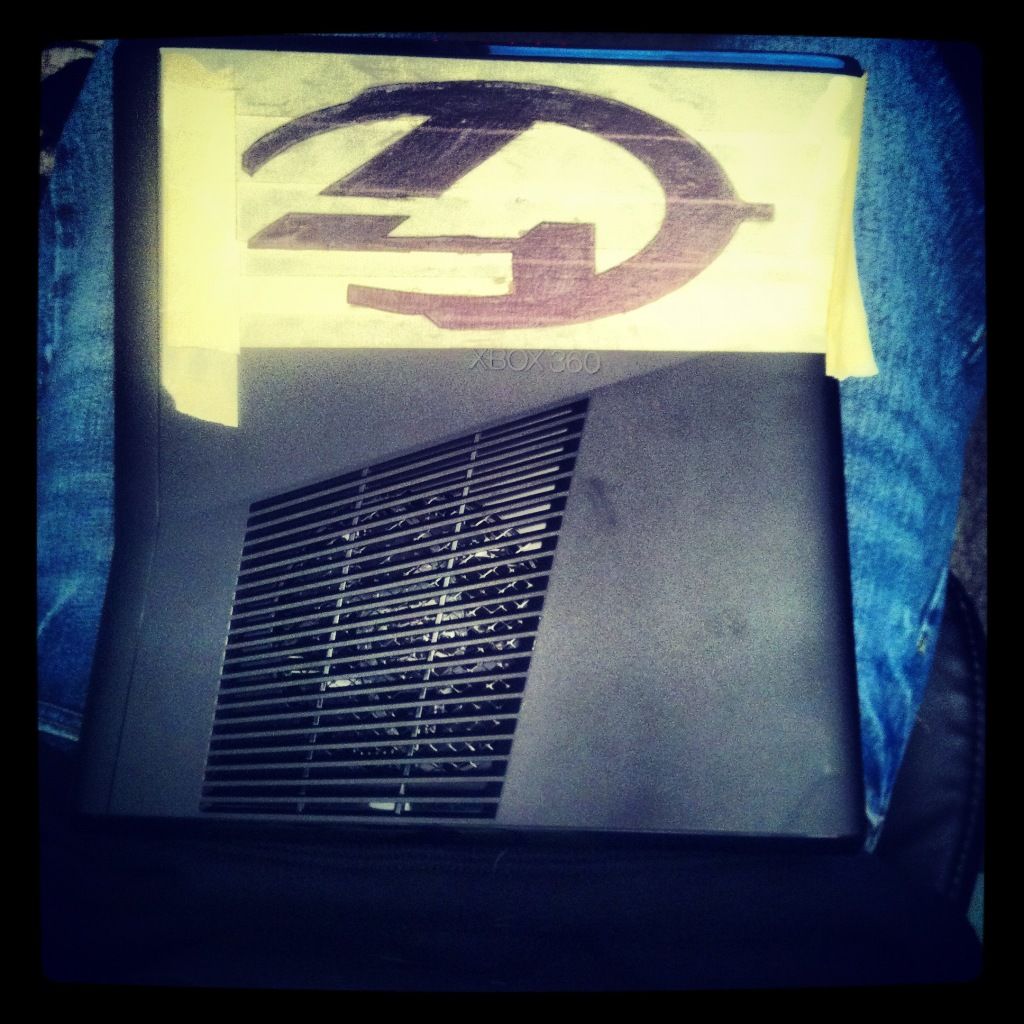

halo 4 logo outline
IPB Image

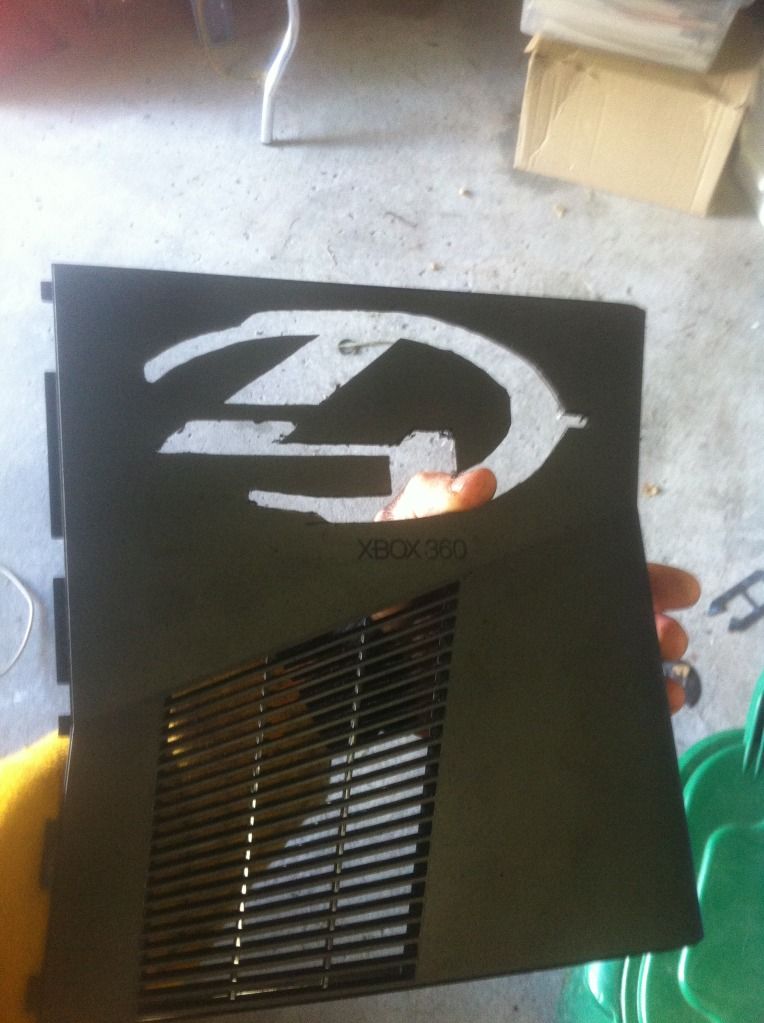

rough cut
IPB Image

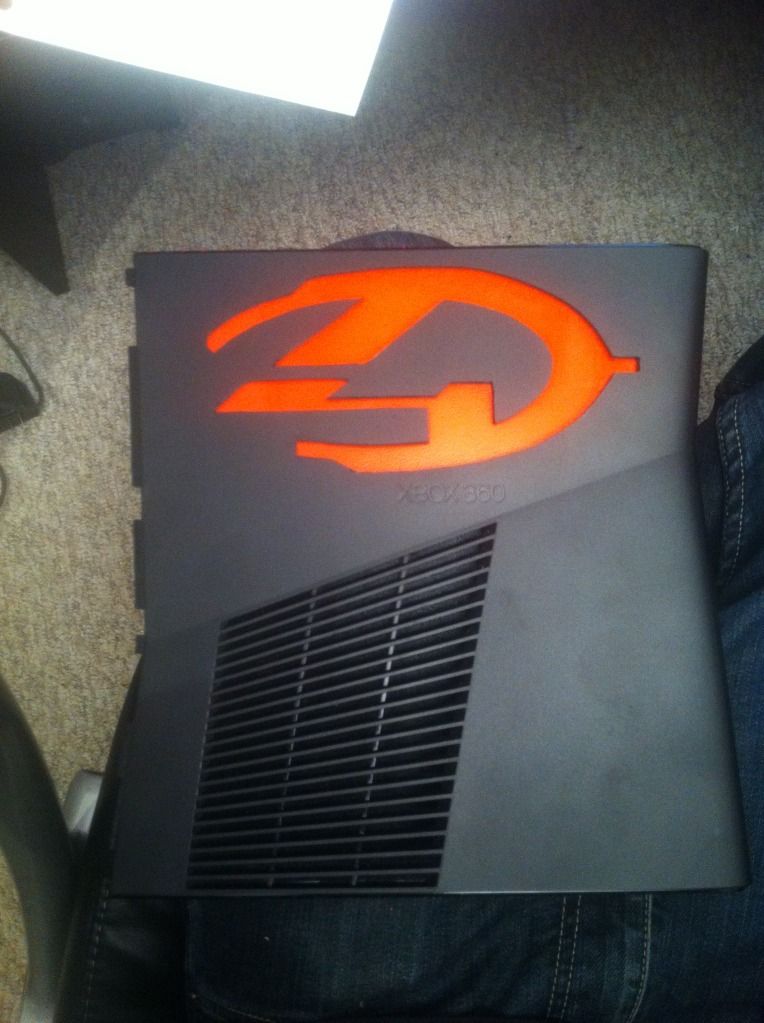

halo 4 logo all done
IPB Image

1 layer of the knights head
IPB Image

the skull
IPB Image



#2 DragonSlayer1987

DragonSlayer1987

    X-S Member

  • Members
  • Pip
  • 136 posts

Posted 01 October 2012 - 07:45 PM

Very cool looking forward to seeing completed mod. What are you using for hinges on the mask?

#3 Kr3w

Kr3w

    X-S Member

  • Members
  • Pip
  • 73 posts
  • Location:Canada
  • Xbox Version:v1.0
  • 360 version:v1 (xenon)

Posted 01 October 2012 - 07:59 PM

QUOTE(DragonSlayer1987 @ Oct 1 2012, 02:45 PM) View Post

Very cool looking forward to seeing completed mod. What are you using for hinges on the mask?

im using 2 hinges glued together so it opens half way then tilts open

i finished up the main part of this mod, i just ordered some leds from china so i got about a month to wait so i put it together til then...im pretty happy with the way it turned out, although i wish the head part turned out a bit better but its the best i could do

side
IPB Image

Promeathean Knight
IPB Image

1 hinge opened
IPB Image

fully opened
IPB Image

front view opened
IPB Image

#4 Bandit5317

Bandit5317

    X-S Genius

  • Members
  • PipPipPipPip
  • 881 posts

Posted 07 October 2012 - 10:30 PM

I really like the logo. Not so much the Promethean Knight. Just my opinion.

#5 Weirdjerz3y

Weirdjerz3y

    X-S X-perience

  • Members
  • PipPip
  • 455 posts
  • Location:United states
  • Xbox Version:v1.0
  • 360 version:v1 (xenon)

Posted 13 October 2012 - 08:48 PM

The logo looks great. The other side, not much.

#6 Weirdjerz3y

Weirdjerz3y

    X-S X-perience

  • Members
  • PipPip
  • 455 posts
  • Location:United states
  • Xbox Version:v1.0
  • 360 version:v1 (xenon)

Posted 13 October 2012 - 08:48 PM

The logo looks great. The other side, not much.

#7 Kr3w

Kr3w

    X-S Member

  • Members
  • Pip
  • 73 posts
  • Location:Canada
  • Xbox Version:v1.0
  • 360 version:v1 (xenon)

Posted 14 October 2012 - 07:19 AM

QUOTE(Weirdjerz3y @ Oct 13 2012, 03:48 PM) View Post

The logo looks great. The other side, not much.


Ya I'm thinking of buying a new case just to replace the back half... the more I see it the more I realize I don't like it

#8 DragonSlayer1987

DragonSlayer1987

    X-S Member

  • Members
  • Pip
  • 136 posts

Posted 14 October 2012 - 09:22 AM

I think the mask was a great idea but you got too much gap. Would have looked better on a old model Xbox, flat surface. Halo 4 logo was very nicely done.

#9 wilgo45

wilgo45

    X-S Expert

  • Members
  • PipPipPip
  • 701 posts

Posted 14 October 2012 - 09:14 PM

Really - A great job on the Halo 4 logo.

Its smart and looks really good.

.... maybe you should have just gone with paint or decal on the bottom side. Remember, less is always more.

#10 Kr3w

Kr3w

    X-S Member

  • Members
  • Pip
  • 73 posts
  • Location:Canada
  • Xbox Version:v1.0
  • 360 version:v1 (xenon)

Posted 15 October 2012 - 02:45 AM

QUOTE(wilgo45 @ Oct 14 2012, 04:14 PM) View Post

.... maybe you should have just gone with paint or decal on the bottom side. Remember, less is always more.


I agree with you on that... I wanted to try something new other then just a plain logo but started to regret it as soon as I started cutting... I'm ordering a new case this week to replace the back, then ill have a extra front to mess around with

#11 Kr3w

Kr3w

    X-S Member

  • Members
  • Pip
  • 73 posts
  • Location:Canada
  • Xbox Version:v1.0
  • 360 version:v1 (xenon)

Posted 03 November 2012 - 07:40 AM

i went and ordered a new case so i could replace the mask part with a regular stock one, i like it alot more with the just halo 4 logo...also bought some smds and leds

fan leds
IPB Image

controller and rol..my first time wiring smds, only ruined one trace cool.gif
IPB Image
