> V1.6 Burnt Point/ Trace Issues, Fragging, from burnt point need help
xboxmodder4life
post Aug 8 2005, 08:35 PM
Post #1


X-S Genius
****

Group: Members
Posts: 950
Joined: 25-October 02
Member No.: 6026
Xbox Version: unk
360 version: v1 (xenon)
I'm trying to repair a V1.6 motherboard that i purchased broken. It currently frags. I desoldered the pin header, all of the LPC traces are fine and all the LPC points are fine. There is one point along one of the LPC traces that is completely burned off

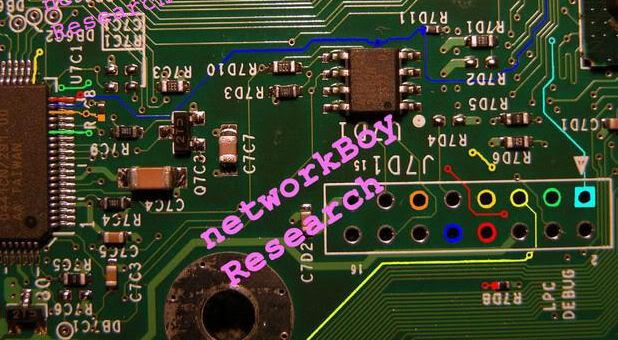

. Ihave some picture (Posted by Chancer). The broken point is the one with the white arrow pointing to it incase u missed it

user posted image

user posted image

basically what i want to know is which points do i have to connect to get that red trace (LAD2)working again. You can see on that red trace the point is completely burned off. So what do i need to solder together.


Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
solder_blob
post Aug 9 2005, 01:58 AM
Post #2


X-S X-perience
**

Group: Members
Posts: 346
Joined: 22-July 05
From: Land of the Damned...
Member No.: 236058
Xbox Version: unk
QUOTE(xboxmodder4life @ Aug 8 2005, 03:46 PM)
I'm trying to repair a V1.6 motherboard that i purchased broken. It currently frags. I desoldered the pin header, all of the LPC traces are fine and all the LPC points are fine. There is one point along one of the LPC traces that is completely burned off
. Ihave some picture (Posted by Chancer). The broken point is the one with the white arrow pointing to it incase u missed it

user posted image

user posted image

basically what i want to know is which points do i have to connect to get that red trace (LAD2)working again. You can see on that red trace the point is completely burned off. So what do i need to solder together.
Thanks
*




hehe is this the mb i sold you???

Cheers!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
xboxmodder4life
post Aug 9 2005, 02:06 AM
Post #3


X-S Genius
****

Group: Members
Posts: 950
Joined: 25-October 02
Member No.: 6026
Xbox Version: unk
360 version: v1 (xenon)
haha yea. I desoldered the Pin header. Cleaned up some solder splashes i found. Cleaned the LPC up. Now i'm just trying to figure out how to bypass that point. Because everything i have tried has still made it frag. So i'm trying to figure out what points i need to connect to get around the broken point.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
xboxmodder4life
post Aug 9 2005, 07:53 PM
Post #4


X-S Genius
****

Group: Members
Posts: 950
Joined: 25-October 02
Member No.: 6026
Xbox Version: unk
360 version: v1 (xenon)
any ideas?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
networkBoy
post Aug 9 2005, 11:15 PM
Post #5


X-S Freak
*****

Group: Members
Posts: 1916
Joined: 26-August 03
Member No.: 58770
Xbox Version: v1.1
360 version: none
The trace to the left of the break is the only place to get the required signal. Solder to the trace and bridge it to the via on the other side of the break (as well as to pin 8 if doing an LPC rebuild).

If you mess up the via at the left side of the break you have a paperweight for a board.

I offer this as a repair service if you are unsettled about soldering to traces.
Just check out the repairs section of my site, also the full resolution images are available in the gallery.
-nB
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chancer
post Aug 9 2005, 11:43 PM
Post #6


Don't You Trust me?
***************

Group: Head Moderator
Posts: 18687
Joined: 31-October 03
Member No.: 71217
Xbox Version: v1.6
360 version: v3.0 (falcon)
I have to add that these images I posted are copies of the ones from networkBoy and his site has a lot of repair info. Credit for the info on these images belongs to nb not me.
If you need the repair sorting he is your man as well.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
xboxmodder4life
post Aug 10 2005, 06:31 AM
Post #7


X-S Genius
****

Group: Members
Posts: 950
Joined: 25-October 02
Member No.: 6026
Xbox Version: unk
360 version: v1 (xenon)
thanks for all the help. I appreciate it and thanks to Networkboy for making these diagrams. I connecting the trace back together. But need to test with my multimeter tomorrow as its still fragging. So i'm assuming another LPC point is damaged or some other damage to the board. I found a huge solder splash over 4 points so i'm assume theres more errors else where to fix.


Thanks again
