Well, I'm still in the middle of working on things, so I don't really feel like sitting down and writing a full page of stuff yet.

But, I managed to snag a 360 brom BestBuy this morning, and I've been working on it on and off all day.

Here's a teaser of what's to come:

IPB Image

This post has been edited by G0t M4xx 21: Aug 2 2006, 04:37 AM
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
10 Pages V  1 2 3 > »
 Reply to this topicStart new topic
Replies(1 - 14)
marauderrt10
post Dec 23 2005, 03:22 AM
Post #2


X-S Expert
***

Group: XS-BANNED
Posts: 661
Joined: 12-May 05
From: Staten Island, NY
Member No.: 220425
Xbox Version: v1.0
360 version: v1 (xenon)
QUOTE(G0t M4xx 21 @ Dec 22 2005, 09:28 PM) *

Well, I'm still in the middle of working on things, so I don't really feel like sitting down and writing a full page of stuff yet.

But, I managed to snag a 360 brom BestBuy this morning, and I've been working on it on and off all day.

Here's a teaser of what's to come:

IPB Image

that looks really wierd. what did you do to it?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sv2
post Dec 23 2005, 03:23 AM
Post #3


X-S Enthusiast


Group: Members
Posts: 9
Joined: 10-March 05
Member No.: 204914
Xbox Version: unk
360 version: unknown
awesome. keep us updated cool.gif
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
G0t M4xx 21
post Dec 23 2005, 03:26 AM
Post #4


X-S Freak
*****

Group: XS-BANNED
Posts: 1990
Joined: 9-November 04
From: ATX! Hook 'em Horns!
Member No.: 164910
Xbox Version: v1.4
360 version: v1 (xenon)
QUOTE(marauderrt10 @ Dec 22 2005, 08:29 PM) *

that looks really wierd. what did you do to it?


The faceplate and everything is off. I just took a pic to show the brightness of the LED's

Here's another fun (disassembled) pic, the wireless controller this time:

IPB Image

This post has been edited by G0t M4xx 21: Dec 23 2005, 03:29 AM
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Diablohead
post Dec 23 2005, 03:31 AM
Post #5


X-S Young Member
*

Group: Members
Posts: 49
Joined: 23-December 05
Member No.: 264797
Wonder how it would look with a mix of led's, working way from green to yellow to orange to red in a clockwise pattern tongue.gif

Nice work, hope to see more in the future.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nfs911
post Dec 23 2005, 03:34 AM
Post #6


X-S X-perience
**

Group: Members
Posts: 460
Joined: 1-June 04
From: Cockeysville, MD
Member No.: 123222
Xbox Version: v1.1
360 version: v1 (xenon)
Looks pretty sweet. How hard was it to solder them on there?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
G0t M4xx 21
post Dec 23 2005, 03:47 AM
Post #7


X-S Freak
*****

Group: XS-BANNED
Posts: 1990
Joined: 9-November 04
From: ATX! Hook 'em Horns!
Member No.: 164910
Xbox Version: v1.4
360 version: v1 (xenon)
it's not easy. Those little 0603 SMT led's are a bitch to solder (the hardest part is not having em fly off)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
EmTea
post Dec 23 2005, 03:55 AM
Post #8


X-S Freak
*****

Group: Members
Posts: 1065
Joined: 23-May 04
From: Kennesaw, GA
Member No.: 121611
Xbox Version: none
360 version: v1 (xenon)
Looking good so far.
Can't wait to get mine.
Flat black and blue LEDs.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
G0t M4xx 21
post Dec 23 2005, 03:55 AM
Post #9


X-S Freak
*****

Group: XS-BANNED
Posts: 1990
Joined: 9-November 04
From: ATX! Hook 'em Horns!
Member No.: 164910
Xbox Version: v1.4
360 version: v1 (xenon)
So far I've replaced the LED in the PSU also.

IPB Image

It's purple because it's in standby, then the 360 is on it's blue.

Also I'd like to give a plug to tdltdcomhk on Ebay, he;s a great supplier of SMT Led's. Cheapest place around.

http://stores.ebay.com/LED-LAMP

This post has been edited by G0t M4xx 21: Dec 23 2005, 04:06 AM
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
henmill
post Dec 23 2005, 04:21 AM
Post #10


X-S Freak
*****

Group: Members
Posts: 1119
Joined: 3-November 05
From: Arkansas, US
Member No.: 256146
Xbox Version: v1.0
360 version: v1 (xenon)
looks like you're doing a great job so far. Are you gonna paint it also, maybe a window? Or is that info classified? ph34r.gif Keep up the good work and the updates!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
marauderrt10
post Dec 23 2005, 06:12 AM
Post #11


X-S Expert
***

Group: XS-BANNED
Posts: 661
Joined: 12-May 05
From: Staten Island, NY
Member No.: 220425
Xbox Version: v1.0
360 version: v1 (xenon)
QUOTE(G0t M4xx 21 @ Dec 22 2005, 10:02 PM) *

So far I've replaced the LED in the PSU also.

IPB Image

It's purple because it's in standby, then the 360 is on it's blue.

Also I'd like to give a plug to tdltdcomhk on Ebay, he;s a great supplier of SMT Led's. Cheapest place around.

http://stores.ebay.com/LED-LAMP

i solder the 0603 led's for a living. They are easy to me since i have been modding nextel cell phones for 4 years. The best place to buy led's from is www.jade-swords.com (a nextel website but he sells them, and you always get 2nd day air free, or www.hypermods.com ( famous cellphone website ) they sell them there too.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
G0t M4xx 21
post Dec 23 2005, 07:49 AM
Post #12


X-S Freak
*****

Group: XS-BANNED
Posts: 1990
Joined: 9-November 04
From: ATX! Hook 'em Horns!
Member No.: 164910
Xbox Version: v1.4
360 version: v1 (xenon)
OK I just finished adding some LED's to the small grill in front of the ahrd drive, the holes in the shield are prefect for mounting 5mm led's to. Just solder the cathode to the shield to ground it, and it also holds the led in place. I'm going to cut out some of that metal shield to make up for blocking some of the holes with led's (any obstruction to cooling air in a box that already overheats is a bad idea).

The led's are blue, this camera just makes em look purple.

IPB Image

I'm gonna finish up the lighting tomorrow, then cut the window (I have an original idea here for that), and then go shoppnig for paint and related supplies.

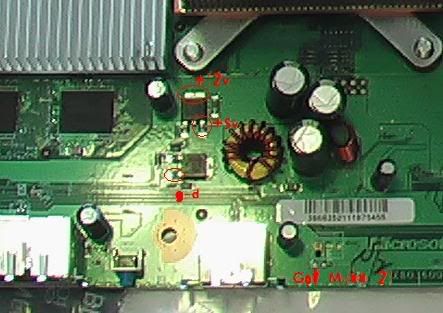

Also, I drew this up really quick in paint, but here is a good location to wire up led's. Now 12V and ground are all over the board, but this is a very good source of +5v, striaght out of the switching transistor.

IPB Image

Sorry if you can't read that, 12v is on top, then 5v, then ground

This post has been edited by G0t M4xx 21: Dec 23 2005, 07:56 AM
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
G0t M4xx 21
post Dec 23 2005, 11:06 PM
Post #13


X-S Freak
*****

Group: XS-BANNED
Posts: 1990
Joined: 9-November 04
From: ATX! Hook 'em Horns!
Member No.: 164910
Xbox Version: v1.4
360 version: v1 (xenon)
OK I did some more work today, I'm almost done with the first (and most original by far) window. Sorry if somebody actually has done it before, I haven't seen it done yet, so I'm taking the credit.

Just a FYI, that metal chassis/shielding is very hard to cut, its at least twice as thick as the original xbox shielding. It ate like 4 of my dremel cut-off wheels just to cut the window on the underside.

Wait, window on thr underside? Yep.










You ready for this?









IPB Image
User is offlineProfile CardPM
