 New Version of Wireless Controller Board, CG, Looky what M$ did... |
|
|
| RDC |
 Aug 24 2007, 06:46 PM
|
X-S Seraphic
Group: Head Moderator
Posts: 8723
Joined: 16-December 03
From: VA
Member No.: 82718
Xbox Version: v1.0
360 version: v1 (xenon)
|

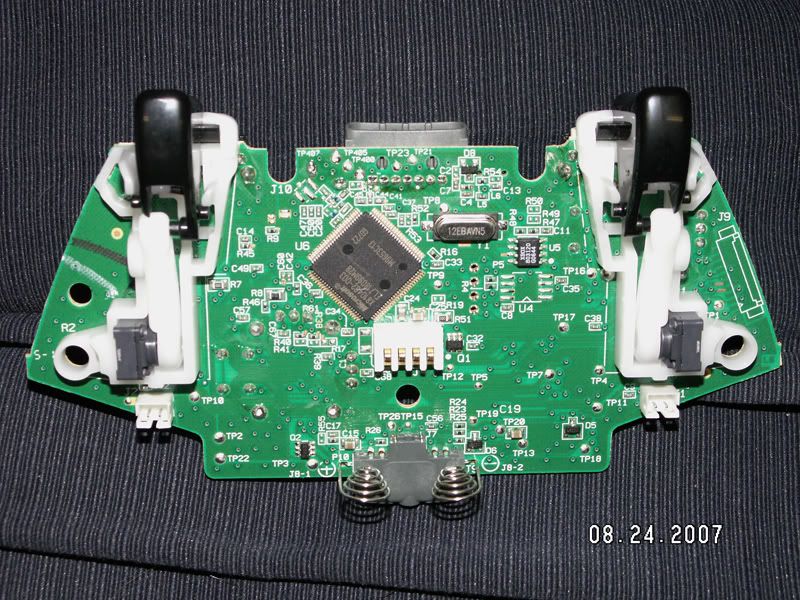

This is from one of the Black controllers that came with the PnC Kit, be dumping that thing later on. I just had a Black controller apart the other day and it was still the old version,so not sure if only these are sporting the new design, or if it's something they all will be going to in the future. My guess is before long these will be turning up in all of the newer Wireless controllers since it pretty much dumps everything into just one IC. The battery has the same info on it as a regular PnC battery, so nothing different there so far, have to do a couple of charges with this new controller and compare that to see if anything different is being stored there. Ya can read more on the PnC battery Pack HERE to understand more of what all that was about.  I'll be tracing this new bad boy out as well, like I did with the Wired and Wireless before it as soon as I get some time to. OLD 'MATRIX' VERSION TOP NEW 'CG' VERSION TOP OLD 'MATRIX' VERSION BOTTOM NEW 'CG' VERSION BOTTOM EDIT: First glance over this thing and it appears to be a common ground controller now, barf, though it will make for some other controller modifications I've been pondering easier. This post has been edited by RDC: May 4 2008, 02:02 PM |
|
|
|
| |
|
  |
Replies
| halaszj |
May 27 2008, 03:34 AM
|
X-S Enthusiast
Group: Members
Posts: 27
Joined: 30-July 05
Member No.: 237624
|
I am so confused, i have an old controller that this mod worked on. I have 2 new controller that I want to mod but using that mod does not work, i have read several articles from RDC but I am totally confused. I looked at this drawing, but not the mod does nothing, the switch wont even fire. Can anyone tell me where to hook up the transister, and what is RT1, 2, and 3? I know that they are the lil solder points on the right side, but in what order are they from top to bottom? 1 2 3 ?? Any help would be appreciated. |
|
|
|
| |
Posts in this topic
 RDC New Version of Wireless Controller Board, CG Aug 24 2007, 06:46 PM alemerson what would be the point of switching to a common g... Aug 24 2007, 07:44 PM Acurariders1320 What is a "common ground setup?" RDC, I... Aug 24 2007, 08:11 PM  sinister slipknot
What is a "common ground setup?" RDC, ... Aug 24 2007, 09:14 PM RDC A 'common ground' setup just means that gr... Aug 24 2007, 09:20 PM sicknasty413 Nice find RDC.
You think they changed up the wire... Aug 24 2007, 10:44 PM alemerson i guess this will finally satisfy all of the wirel... Aug 24 2007, 11:40 PM Acurariders1320 Let us know what you find out about the controller... Aug 25 2007, 03:52 AM RDC
Nice find RDC.
You think they changed up the wir... Aug 25 2007, 06:51 AM YUNG ERIC this is a nice find I just bought a black controll... Aug 25 2007, 07:27 AM RDC OK, here we go so far. It IS a common ground setup... Aug 25 2007, 01:01 PM YUNG ERIC Ok so I looked at the controller and my black cont... Aug 25 2007, 09:55 PM RDC I've done a little bit of tracing out this and... Aug 31 2007, 02:33 AM qweewqaz nvm Sep 23 2007, 11:45 PM YUNG ERIC it does look like scince there are less components... Aug 31 2007, 08:02 AM RDC Here's the bottom of the board with RSC, LSC, ... Sep 4 2007, 01:35 AM Heet Man, dissapointing. Big FU to M$. (yes I kno... Sep 4 2007, 03:32 AM Perplexer Well, what I would have given for a 360 pad with c... Sep 4 2007, 07:00 AM RDC You're Welcome guys. This is the first one I... Sep 4 2007, 07:13 AM RDC All Buttons and Analog lines are now traced out (p... Sep 4 2007, 10:33 PM RDC Just a little update, as was already pointed out e... Sep 10 2007, 03:46 PM pablot looks like they've done a hefty amount of opti... Oct 8 2007, 09:33 AM mikemikemikemikemike which is the actual part that sends te radio waves... Oct 8 2007, 11:58 AM RDC
which is the actual part that sends te radio wave... Oct 8 2007, 01:58 PM pablot man.. looked at the pictures again.. they really s... Oct 8 2007, 05:33 PM vacuuum Just wondering if you guys have opened a Halo Edit... Oct 8 2007, 06:59 PM RDC As far as I know the Halo controllers are the new ... Oct 8 2007, 09:34 PM MeKiwi
As far as I know the Halo controllers are the new... Nov 15 2007, 01:23 AM SpArTaN323853 The controller almost has a full CG. The RT and t... Nov 6 2007, 05:59 AM RDC That's not ground, it's voltage. The Trigg... Nov 6 2007, 08:05 AM Fallback
That's not ground, it's voltage. The Trig... Jan 18 2008, 02:50 AM SpArTaN323853 what do you mean by "wipers"? I am tryi... Nov 6 2007, 04:06 PM RDC The wiper is the center lead of the Triggers poten... Nov 6 2007, 06:51 PM SpArTaN323853 well on the older boards all I had to do was conne... Nov 6 2007, 08:27 PM RDC Do the same as ya did on the older version board, ... Nov 6 2007, 10:20 PM Fallback
Do the same as ya did on the older version board,... Jan 11 2008, 04:43 AM RDC I meant the McFarlane Halo ones mainly, and have o... Nov 15 2007, 02:19 AM RDC
Im trying to understand exactly what you mean.
I... Jan 11 2008, 03:52 PM Fallback Thanks!!!! Using your diagram I ha... Jan 17 2008, 04:07 AM Fallback I reread the whole thread and noticed that you ans... Jan 17 2008, 06:00 PM RDC The easiest way would be to use Transistors. You c... Jan 19 2008, 03:16 AM Fallback
The easiest way would be to use Transistors. You ... Jan 19 2008, 03:36 AM groupbmonster ok so im pretty noob at controller mods and went t... Jan 19 2008, 03:22 AM RDC
ok so im pretty noob at controller mods and went ... Jan 19 2008, 12:49 PM Fallback I am trying to follow what you are saying. Here is... Jan 20 2008, 04:48 PM RDC You need to put a 10k Resistor between the Emitter... Jan 20 2008, 07:27 PM Fallback I have the grounds tied together. Below is the set... Jan 21 2008, 04:35 PM rb8720 I love this new version of the board. It is soo mu... Jan 21 2008, 04:49 PM Fallback The fact that you wire can one button instead of t... Jan 22 2008, 12:24 AM RDC
I have the grounds tied together. Below is the se... Jan 22 2008, 01:39 AM Fallback YES! The extra resistor worked. Now the trigge... Jan 22 2008, 04:21 AM jhferry Is there a +5v connection on this new board anywhe... Jan 23 2008, 04:18 AM adol_ivxx Hey, I was modding my black 360 controller by (che... Jan 28 2008, 06:08 AM RDC
Is there a +5v connection on this new board anywh... Jan 28 2008, 09:18 PM controller-guy anyone who if there is test points for the trigger... Apr 13 2008, 08:03 AM VERTIGONIX I am a newbie on this site but I did want to say t... Apr 15 2008, 07:05 PM VERTIGONIX http://oxygenfo.startlogic.com/sitebuildercontent/... Apr 15 2008, 08:12 PM spankymcgee27 RDC... do you have the new wired controller's ... Apr 21 2008, 03:21 AM RDC @ - controller-guy
There are no nice TP spots on ... Apr 21 2008, 02:08 PM VERTIGONIX Thanks RDC for replying!
"to do, but ge... Apr 23 2008, 02:06 AM RDC It works too. Nice one there VERTIGONIX, that... Apr 23 2008, 04:16 AM VERTIGONIX :D Wow! That was fast! Thanks for checking... Apr 24 2008, 03:01 AM RDC I may later on, no plans to do that part of it now... Apr 24 2008, 12:16 PM VERTIGONIX Thanks for changing it to a link! I told you I... Apr 24 2008, 06:09 PM dcrvx2k RDC, I am using the CG controller to make an arcad... Apr 28 2008, 02:54 AM RDC
RDC, I am using the CG controller to make an arca... Apr 28 2008, 06:22 AM biggmacattack Hi RDC,
I've read through the posts and have... May 2 2008, 08:54 PM RDC @ biggmacattack - The difference you're not se... May 4 2008, 02:23 PM biggmacattack
If ya set your PICAXE up to output the same volt... May 4 2008, 08:30 PM Son of None Hey RDC, would you happen to have any insight or a... May 12 2008, 09:04 AM RDC If you have the newer CG version Wireless board th... May 27 2008, 04:35 AM halaszj So will this work?
http://img262.imageshack.us/im... May 28 2008, 12:10 AM RDC Only, and only on the newer CG version Wireless bo... May 28 2008, 01:14 AM halaszj Awesome, Ill give this a shot tonight, I can use t... May 28 2008, 01:28 AM RDC TP2 for Ground is fine, not sure exactly what spot... May 28 2008, 02:02 AM halaszj ok ok RDC, I have to jump on the RDC band wagon, I... May 28 2008, 03:15 AM RDC You can use just about any 6 x 6 x 7mm Tact switch... May 28 2008, 03:37 AM halaszj i like those tact switches, do you remember the pa... May 28 2008, 04:28 AM RDC Mouser, their part number is 688-SKHHQV, they have... May 28 2008, 02:58 PM halaszj I have my controller all modded up, I tested it an... May 29 2008, 03:42 AM RDC Are you using the CMOS version of the 555 Timer?
... May 29 2008, 04:07 AM halaszj I am using these 555's they are CMOS.
Never ... May 29 2008, 04:20 AM RDC If you're frying the potentiometer I'd ima... May 29 2008, 06:18 PM halaszj maybe the parts were garbage, i made another one a... May 30 2008, 02:45 AM halaszj RDC,
I have a new problem that has me totally con... May 31 2008, 05:43 AM RDC There's no real reason it should act different... May 31 2008, 10:56 AM halaszj thats another thing, when i adjust the pot it does... May 31 2008, 03:34 PM RDC Ya must have something messed up somewhere, I just... May 31 2008, 09:29 PM halaszj i will remove it in today and show you what I am w... May 31 2008, 09:50 PM halaszj this totally sux no matter what i do this damn thi... Jun 3 2008, 02:39 AM halaszj RDC,
Here are the photos of what I have going on.... Jun 3 2008, 03:16 AM RDC Is C1 in backwards? Looks like it from the pic the... Jun 3 2008, 04:09 AM halaszj the tantalum? the + is closest to you in the pictu... Jun 3 2008, 05:01 AM halaszj crap, i just realized that it IS backwards!... Jun 3 2008, 05:15 AM RDC Don't know a thing about it, a R/F mod is too ... Jun 3 2008, 05:31 AM halaszj I was just wondering what kind of chip it was Jun 3 2008, 05:48 AM halaszj sh!t!! now only single fire Jun 4 2008, 03:47 AM halaszj RDC,
You think you can take a look and see what i... Jun 4 2008, 04:23 AM RDC Alright, I built the thing and it works fine, TP4 ... Jun 4 2008, 05:31 PM
|
