> Chatpad Disassembly And Led Change Tutorial, awesome new look for chatpad
john2185
post Aug 24 2010, 06:30 PM
Post #1


X-S Member
*

Group: Members
Posts: 113
Joined: 8-November 09
From: uniontown pa
Member No.: 423609
Xbox Version: none
360 version: v4.0 (jasper)
Tools:
T6 torx
0# phillips srewdriver
soldering iron

materials:
10 0603 smd leds

1.first remove these torx screws
then gently pull apart the chatpad

IPB Image

2.now unplug the wire

IPB Image

3.remove these 5 phillips screws and push the green circuit board throught the front

IPB Image

4. now lift up on the black tape along the edges and lift the front piece off exposing the leds

IPB Image

5.now desolder the old ones and solder the new ones on

IPB Image

6.okay reassemble and admire your work

IPB Image

sorry for the blurry pics
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
light-of-jesus
post Aug 24 2010, 11:58 PM
Post #2


X-S Senior Member
**

Group: Members
Posts: 179
Joined: 30-December 07
Member No.: 368387
Looks like a cool mod. I will do it and post some quality pictures for a better guide.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
john2185
post Aug 25 2010, 12:22 AM
Post #3


X-S Member
*

Group: Members
Posts: 113
Joined: 8-November 09
From: uniontown pa
Member No.: 423609
Xbox Version: none
360 version: v4.0 (jasper)
yeah the camera wouldnt focus on it
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
RRODXbox
post Aug 25 2010, 01:12 AM
Post #4


X-S X-perience
**

Group: Members
Posts: 435
Joined: 9-June 09
Member No.: 413165
Xbox Version: unk
360 version: v1 (xenon)
Not got macro function?

Nice mod, I did this with blue a while back but didn't touch the shift leds.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
john2185
post Aug 25 2010, 01:42 AM
Post #5


X-S Member
*

Group: Members
Posts: 113
Joined: 8-November 09
From: uniontown pa
Member No.: 423609
Xbox Version: none
360 version: v4.0 (jasper)
yeah ive done a few so i thought i would post this to help some people out and yeah theres no macro mode
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
light-of-jesus
post Aug 25 2010, 02:48 AM
Post #6


X-S Senior Member
**

Group: Members
Posts: 179
Joined: 30-December 07
Member No.: 368387
Ok. Here is tutorial with better pictures.

Tools:
T6 torx
0# phillips srewdriver aka 1/16 phillips screwdriver
soldering iron

materials:
10 0603 smd leds

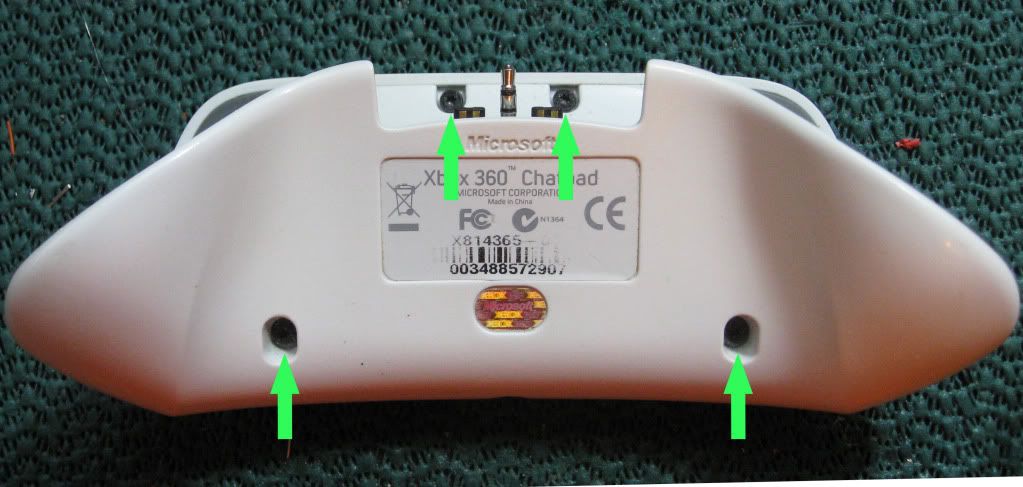

1.first remove these torx screws
then gently pull apart the chatpad

IPB Image

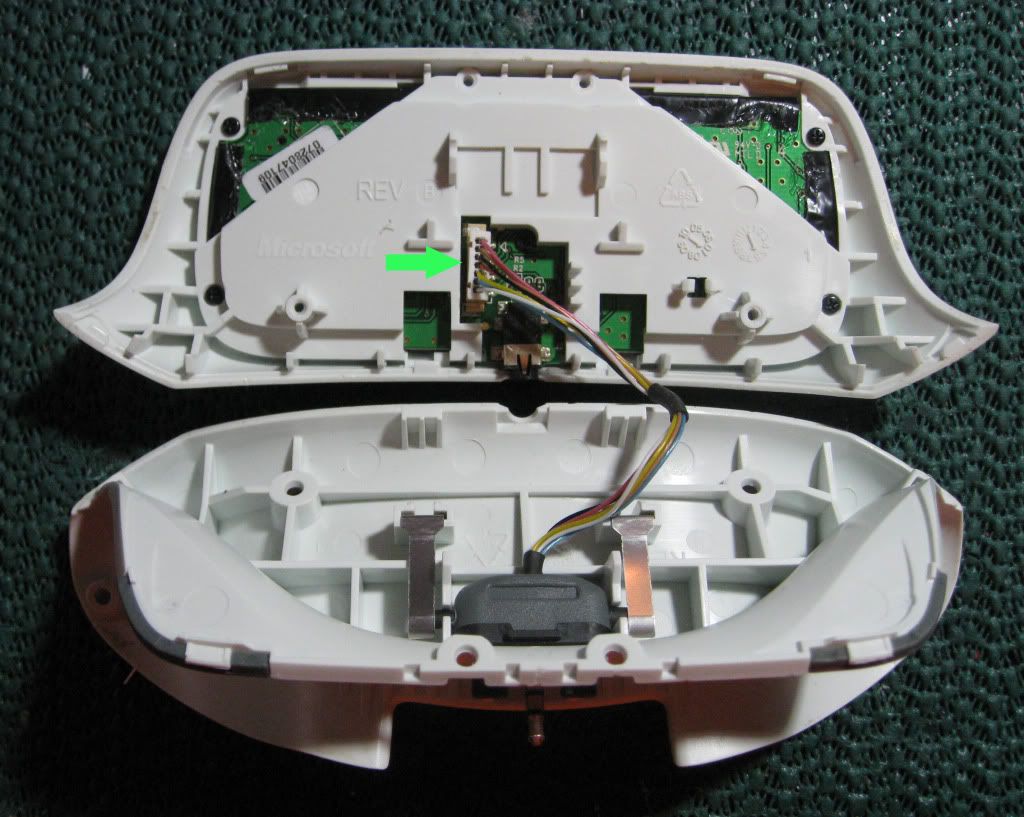

2.Now unplug the cable

IPB Image

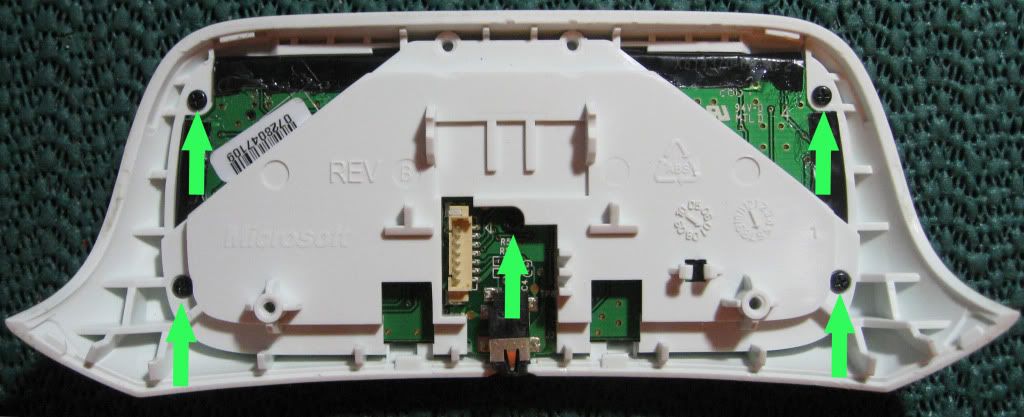

3.Next remove these 5 phillips screws

IPB Image

4. Now push the green circuit board through the front by pushing on these corners.

IPB Image

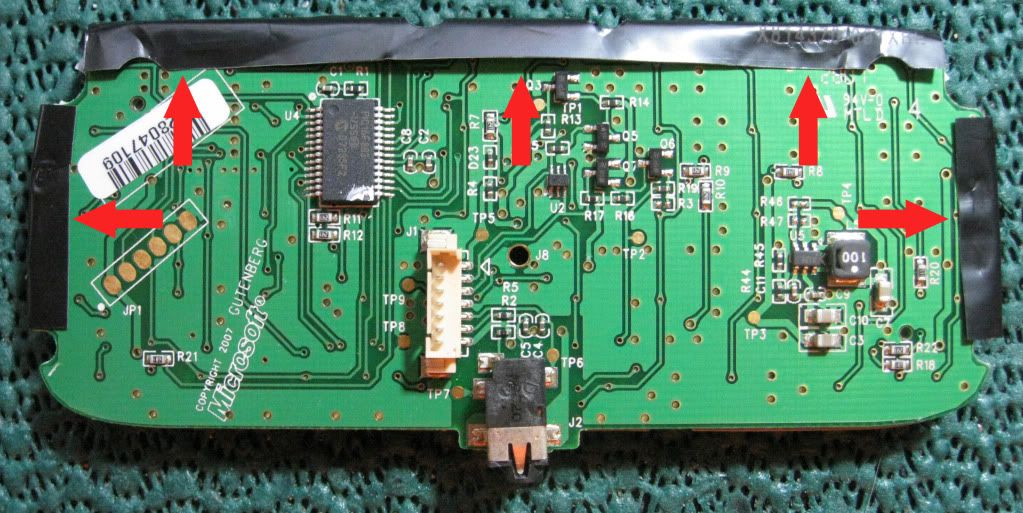

5. Now lift up on the black tape along the edges and lift the front piece off exposing the LED's

IPB Image

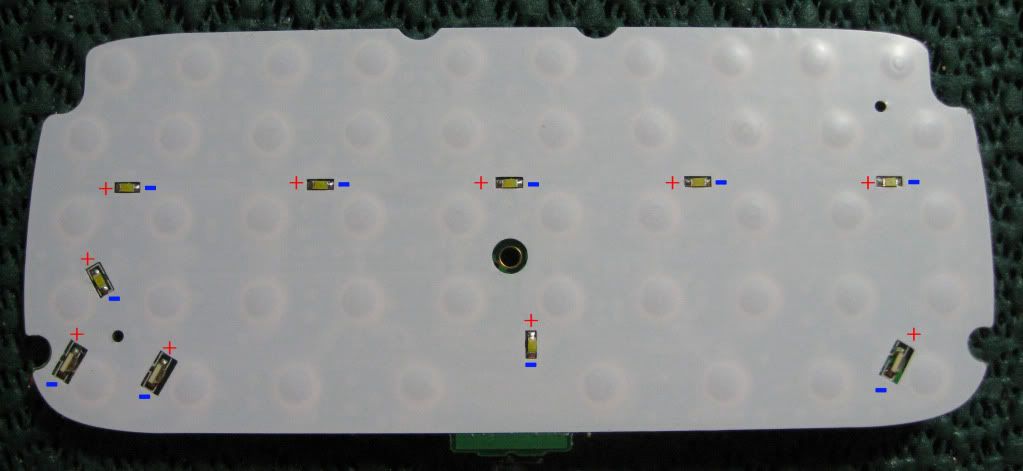

6. Next desolder the current LED's and replace them with what ever color LED's you want. Don't worry if you burn the white film on the board a little bit.

IPB Image

7. Now reassemble the Chatpad and admire your work. (If the black tape doesn't stick back just use some hot glue. )

IPB Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
john2185
post Aug 25 2010, 05:42 PM
Post #7


X-S Member
*

Group: Members
Posts: 113
Joined: 8-November 09
From: uniontown pa
Member No.: 423609
Xbox Version: none
360 version: v4.0 (jasper)
thanks for the pics
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ios37
post Aug 25 2010, 07:59 PM
Post #8


X-S Enthusiast


Group: Members
Posts: 26
Joined: 5-March 09
Member No.: 406810
4. Now push the green circuit board through the front by pushing on these corners.
Is this pushing the face with all the buttons off the shell half?

Is the "black tape" part of the face?
I would love to see a picture of this before I tear apart my chat pad.

Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
john2185
post Aug 25 2010, 09:32 PM
Post #9


X-S Member
*

Group: Members
Posts: 113
Joined: 8-November 09
From: uniontown pa
Member No.: 423609
Xbox Version: none
360 version: v4.0 (jasper)
QUOTE(ios37 @ Aug 25 2010, 07:59 PM) *

4. Now push the green circuit board through the front by pushing on these corners.
Is this pushing the face with all the buttons off the shell half?

Is the "black tape" part of the face?
I would love to see a picture of this before I tear apart my chat pad.

Thanks



yes it is pushing the circuit board out of the shell

the tape is attached to the plastic with the buttons
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
light-of-jesus
post Sep 5 2010, 11:33 PM
Post #10


X-S Senior Member
**

Group: Members
Posts: 179
Joined: 30-December 07
Member No.: 368387
sticky???
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
RDC
post Sep 6 2010, 05:39 AM
Post #11


X-S Seraphic
************

Group: Head Moderator
Posts: 8705
Joined: 16-December 03
From: VA
Member No.: 82718
Xbox Version: v1.0
360 version: v1 (xenon)
QUOTE(light-of-jesus @ Sep 5 2010, 06:33 PM) *
sticky???

That happened 2 weeks ago. wink.gif
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
light-of-jesus
post Sep 9 2010, 10:37 PM
Post #12


X-S Senior Member
**

Group: Members
Posts: 179
Joined: 30-December 07
Member No.: 368387
Nice RDC...sorry I was looking in the wrong section of the sticky's. I was thinking it would be up by the controller mods. Didn't notice you created a separate area for chat pad mods
