> Power Specs Of Xbox 1 For Xbox Arcade
jammin0
post Sep 11 2011, 05:06 AM
Post #1


X-S Enthusiast


Group: Members
Posts: 24
Joined: 20-March 05
Member No.: 207652
I'm working on a 4-player arcade pedestal. I need to power 4 1W LEDs and I would like to power them from the xbox so that they work easily switching with the xobx itself. Anyway, I am going to underpower them and run the 4 in series which requires 10 volts and a total of about 2 Watts. I first thought I could just power them from the DVD drive power but now I am wondering if that is going to have some negative effects on the DVD drive. Any thoughts? Should I power from the yellow wire from the DVD or try to tap in somewhere closer to the motherboard?

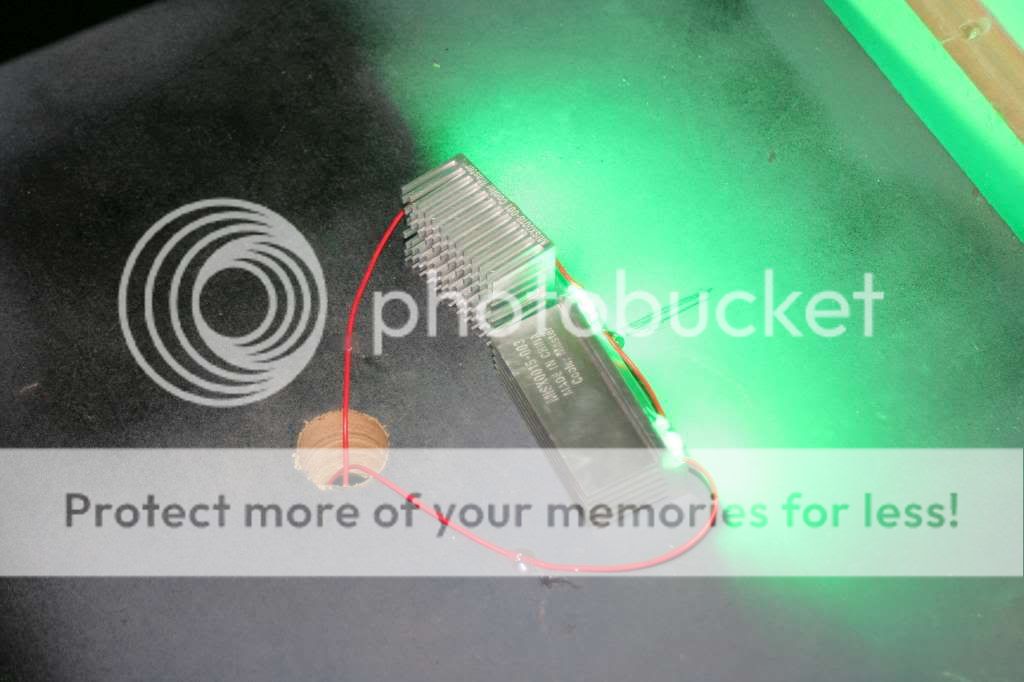

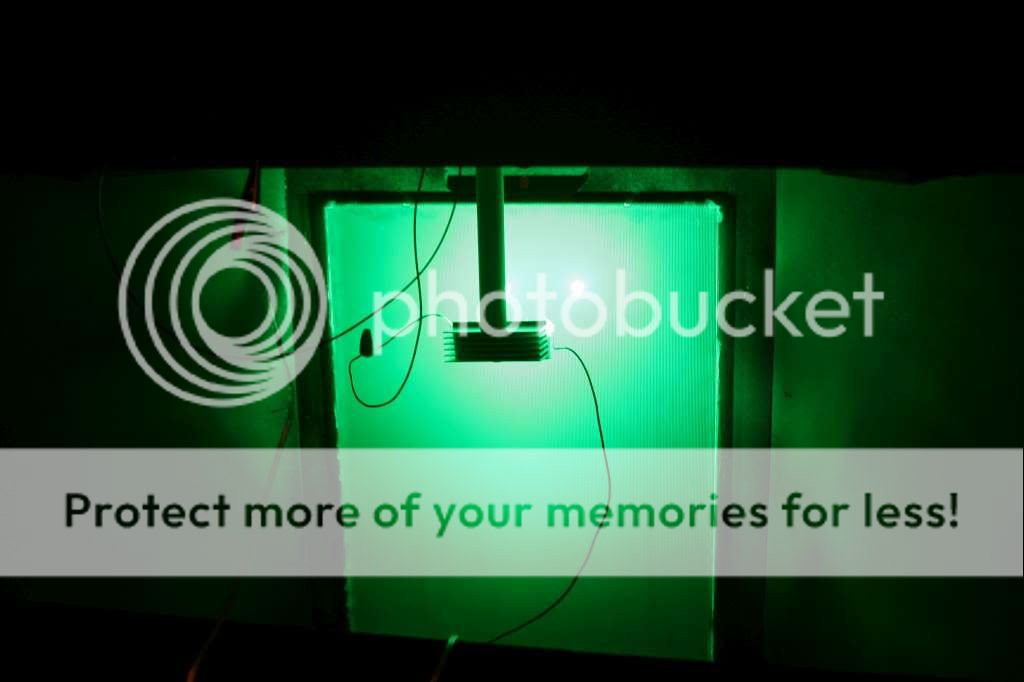

Here's a picture of the control panel lit up.
IPB Image
IPB Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Nextelhalo
post Sep 11 2011, 10:17 PM
Post #2


X-S X-perience
**

Group: Members
Posts: 473
Joined: 5-November 07
From: ATX
Member No.: 361716
Xbox Version: v1.4
360 version: v4.0 (jasper)
It would probably be best to tap into the power cable from the hard drive. It will give you a 5v and 12v source to use. It should be able to handle it just fine.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bandit5317
post Sep 11 2011, 10:22 PM
Post #3


X-S Genius
****

Group: Members
Posts: 874
Joined: 1-June 07
Member No.: 344371
Well there aren't any 10v rails on the xbox, so you'll have to make do with 12v if you're still going to wire it up that way. You could just use a resistor to bump down the voltage, but 2 watts is a lot for one resistor. I would never wire anything up to the DVD drive's power rails. I've just heard too many stories of people overloading and breaking them. You can use any of the 12v lines (yellow wires) going from the PSU to the motherboard or you can use the molex connector that goes to the hard drive.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jammin0
post Sep 12 2011, 12:42 AM
Post #4


X-S Enthusiast


Group: Members
Posts: 24
Joined: 20-March 05
Member No.: 207652
Awesome info guys. Yeah, I was planning on using some realtors off of the 12v source. They make some big ceramic resistors. I guess I could run them off of a 5v source in parallel. I'm going to check the online calculator right now to see what it recommends in terms of resistors. Anyone know if the 12 and 5v rails are exactly 12 and 5v? I guess I need to just break out the multimeter.

Thanks again for the heads up about the DVD drive.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dsdork
post Sep 26 2011, 05:11 AM
Post #5


X-S Young Member
*

Group: Members
Posts: 30
Joined: 7-March 06
Member No.: 274854
Super cool project!

What are you using to interface the xbox with the arcade joysticks?
Are you going to add a trackball or spinner?
What are you planning on using for software?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jammin0
post Oct 5 2011, 10:50 PM
Post #6


X-S Enthusiast


Group: Members
Posts: 24
Joined: 20-March 05
Member No.: 207652
I was able to find an LED driver for $3.30Link Here, the only bad thing is that it is coming from china so 2-3 weeks air post. Oh well, I can wire everything up and use my bench supply for the time being to get everything dialed in. I'll use a relay from the +5V rail on the xbox to power on and off the LED driver when the xbox is running.

Here's a whole bunch more pictures. It won't have a spinner or trackball, just joystick and push buttons. It is running coinops 2. The joysticks are wired to hacked xbox controllers, 1 per setup which simply plug into the xbox.
IPB Image
IPB Image
IPB Image
IPB Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
caaraa
post Oct 7 2011, 12:01 PM
Post #7


X-S Young Member
*

Group: Members
Posts: 42
Joined: 9-April 11
Member No.: 452352
Well there aren't any 10v rails on the xbox, so you'll have to make do with 12v if you're still going to wire it up that way.
IPB Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jammin0
post Oct 19 2011, 06:25 AM
Post #8


X-S Enthusiast


Group: Members
Posts: 24
Joined: 20-March 05
Member No.: 207652
Video of finished arcade
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ohhwun_xtreme
post Oct 24 2011, 09:20 PM
Post #9


X-S Senior Member
**

Group: Members
Posts: 177
Joined: 24-January 06
From: South Texas
Member No.: 269847
Xbox Version: v1.6
360 version: v3.0 (falcon)
wow, that's awesome!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
onlysublime
post Dec 2 2011, 04:30 AM
Post #10


X-S Enthusiast


Group: Members
Posts: 23
Joined: 28-January 07
Member No.: 326710
really awesome job!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Annal606
post Dec 11 2011, 10:54 AM
Post #11


X-S Enthusiast


Group: Members
Posts: 16
Joined: 24-November 11
Member No.: 460028
Xbox Version: unk
360 version: unknown
this is really cool, I like here!
IPB Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
