> Wireless Matrix2 Controller, Latest Wireless Contorller Version
RDC
post Sep 13 2011, 10:52 PM
Post #1


X-S Seraphic
************

Group: Head Moderator
Posts: 8705
Joined: 16-December 03
From: VA
Member No.: 82718
Xbox Version: v1.0
360 version: v1 (xenon)
Here's the latest Wireless controller version, again. For whatever reason M$ has decided to go back with the Matrix layout. With the exception of a few slight changes, this version is pretty much the same as the original Wireless Matrix, but if you're going to do anything with the buttons be aware there are some changes there between that older Matrix and this new Matrix 2, mainly the A and B buttons.

NOTE: This is not completely traced out yet. I'll finish it up later like the rest when I have time.

TOP
IPB Image

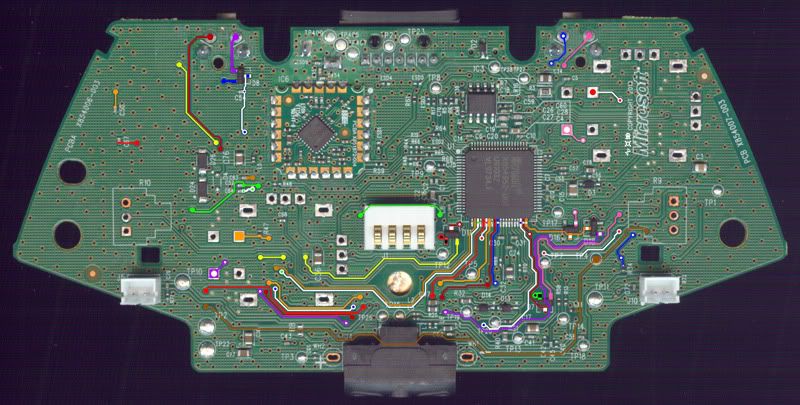

BOTTOM
IPB Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dopesun
post Sep 14 2011, 03:33 AM
Post #2


X-S Senior Member
**

Group: Members
Posts: 210
Joined: 3-April 09
From: BKNY, NEW YORK CITY
Member No.: 409126
Xbox Version: none
360 version: v5.0 (360S - trinity)
Nice... Does this mean the blue leds wont dim?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
phenoptix
post Sep 14 2011, 11:32 AM
Post #3


X-S Senior Member
**

Group: Members
Posts: 251
Joined: 27-June 04
Member No.: 127642
Xbox Version: unk
360 version: v1 (xenon)
Cheers for the heads up, again!

Dopesun, you need to find better blue LEDs!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Hazeree
post Sep 25 2011, 05:47 AM
Post #4


X-S Senior Member
**

Group: Members
Posts: 204
Joined: 20-January 07
Member No.: 325372
Yes, the A and B are now Common line. The rest are the same as before. Also, the switched 2.0V spot normally used is not there anymore. But I did find a 2.0V swicthed spot on one of those 4 pins in the middle. I dunno how it works with PNC though.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dopesun
post Sep 29 2011, 04:28 AM
Post #5


X-S Senior Member
**

Group: Members
Posts: 210
Joined: 3-April 09
From: BKNY, NEW YORK CITY
Member No.: 409126
Xbox Version: none
360 version: v5.0 (360S - trinity)
QUOTE(phenoptix @ Sep 14 2011, 06:32 AM) *

Cheers for the heads up, again!

Dopesun, you need to find better blue LEDs!


I actually meant for the ROL. The 0603 smd leds. the white and blues where always dim in a cg. so im hoping the matrix 2 has the same capabilities of its sibling...

i buy from u btw. so if my leds r bad.... LMFAO... Whats up Hazer!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
RDC
post May 15 2012, 06:24 PM
Post #6


X-S Seraphic
************

Group: Head Moderator
Posts: 8705
Joined: 16-December 03
From: VA
Member No.: 82718
Xbox Version: v1.0
360 version: v1 (xenon)
Sorry for the late reply here.

The Matrix 2 works like the Matrix did as far as driving the LEDs, it uses PWM also, so Blue, White and such color LEDs will not dim like they do in the CG versions.

The spot in the middle shouldn't be used as a switched power source, that's the SCK line for the PnC pack.

If a switched power source is needed the OptoCoupler or Transistor method should be used and the switched Analog voltage line used, TP7, to turn that on/off.
